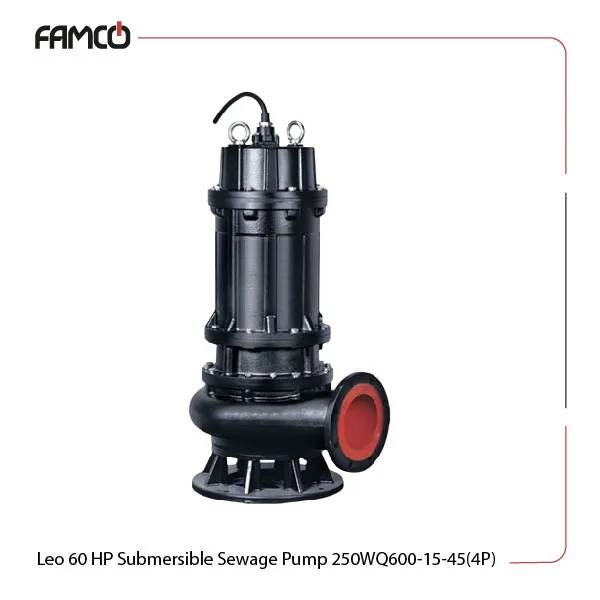

Leo 60 HP Submersible Sewage Pump 250WQ600-15-45(4P)

45 kW (60 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: Leo Pumps, Leo Submersible Pump

Overview of Leo 60 HP Submersible Sewage Pump 250WQ600-15-45(4P)

This high-performance 60 HP pump is engineered for demanding environments. The 250WQ600-15-45(4P) excels in applications requiring deep immersion of up to 25 meters and high flow rates reaching 600 m3/h. Its solid construction and advanced features make it ideal for industrial and agricultural use. The pump’s ability to handle various liquid types makes it versatile for different sectors. Its IP68 rating is the key to operating in challenging conditions without compromising performance.

Leo 60 HP Submersible Sewage Pump 250WQ600-15-45(4P) Specifications

This powerful pump is designed for heavy-duty applications. This series of Leo submersible pumps can handle a maximum immersion depth of 25 meters and operates efficiently at a liquid temperature of up to +40 degrees Celsius. With a frequency of 50Hz, this Leo sewage pump maintains a liquid pH value between 5 and 9, making it suitable for various fluids. The winding is made of durable copper, ensuring longevity. It has an insulation class of B and a protection degree of IP68, making this product resistant to dust and water. The pump delivers a power output of 45 kW (60 HP) and can achieve a maximum head of 43 meters. It has an impressive flow rate of 600 m3/h and operates at a speed of 1500 rpm. The three-phase voltage requirement is 380V, and it features a reliable Sic-Sic/Sic-Sic mechanical seal for optimal performance.

Specification	Value
Max. immersion depth (m)	25
Liquid temperature (℃)	+40
Frequency	50Hz
Liquid PH value	5-9
Insulation class	B
Protection degree	IP68
Power (kW)	45
Power (HP)	60
Max. head (m)	43
Max. flow rate (m3/h)	600
Speed (rpm)	1500
Three-phase voltage (V)	380

Leo 60 HP Submersible Sewage Pump 250WQ600-15-45(4P) Materials

Winding: copper
Mechanical seal: Sic-Sic/Sic-Sic

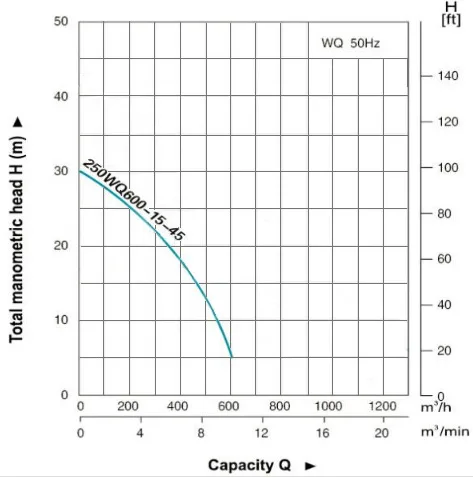

Leo 60 HP Submersible Sewage Pump 250WQ600-15-45(4P) Performance Curve

Leo 60 HP Submersible Sewage Pump 250WQ600-15-45(4P) Applications

Industrial water transfer
Agricultural irrigation systems
Wastewater management
Cooling systems in manufacturing

Leo 60 HP Submersible Sewage Pump 250WQ600-15-45(4P) Benefits

High efficiency with a maximum flow rate of 600 m3/h
Durable copper winding for extended lifespan
IP68 protection for reliable operation in harsh environments
Versatile use across multiple industries

Leo 60 HP Submersible Sewage Pump 250WQ600-15-45(4P) Price List

No.	Name	Price
1	Leo 60 HP Submersible Sewage Pump 250WQ600-15-45(4P) Price	Contact us

Brand	Leo
Maximum immersion depth (m)	25
Maximum Liquid Temperature (°C)	40
Frequency (Hz)	50
Insulation Class	B
Degree of Protection	IP68
Power (kW)	45
Power (HP)	60
Maximum Delivery Head (m)	38
Maximum Flow Rate (m3/h)	800
Speed (RPM)	1500
Voltage (V)	380
Mechanical Seal	Silicon Carbide/Silicon Carbide
Applications	Cooling systems, Irrigation, Wastewater management, Water Transfer and Supply
