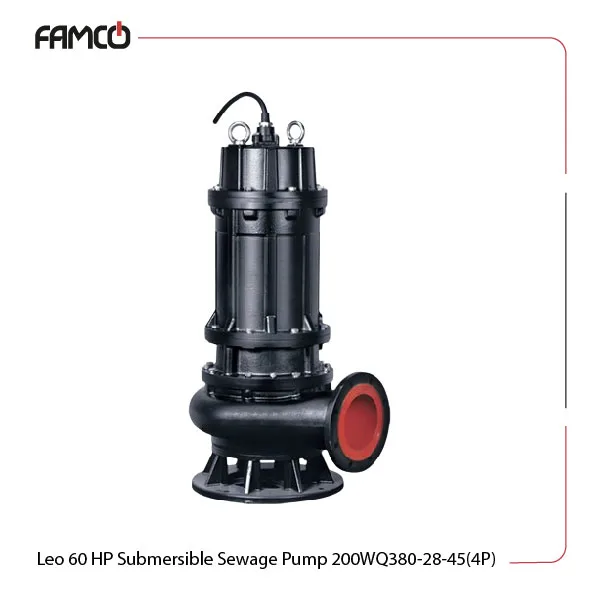

Leo 60 HP Submersible Sewage Pump 200WQ380-28-45(4P) Specifications
This powerful pump is designed for deep immersion applications, with a maximum immersion depth of 25 meters. This Leo submersible pump operates efficiently at a liquid temperature of up to +40°C and supports a liquid pH range of 5 to 9. The pump features a sturdy copper winding and falls under insulation class B, so it stays durable. With a protection degree of IP68, this Leo sewage pump is suitable for submersible use. The pump delivers a maximum power of 45 kW (60 HP) and can achieve a maximum head of 38 meters. It has an impressive flow rate of 800 m3/h and operates at a speed of 1500 rpm. The three-phase voltage requirement is 380V, which is standard and compatible with most setups. Equipped with a Sic-Sic mechanical seal, this pump delivers enhanced performance.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 45 |
| Power (HP) | 60 |
| Max. head (m) | 38 |
| Max. flow rate (m3/h) | 800 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 60 HP Submersible Sewage Pump 200WQ380-28-45(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 60 HP Submersible Sewage Pump 200WQ380-28-45(4P) Applications
- Irrigation systems in agriculture
- Industrial water supply and drainage
- Wastewater management
- Construction site dewatering
Leo 60 HP Submersible Sewage Pump 200WQ380-28-45(4P) Benefits
- High efficiency with a maximum flow rate of 800 m3/h
- Durable construction with copper winding and IP68 protection
- Versatile use in various liquid types with pH 5-9
- Reliable performance with a powerful 45 kW motor
