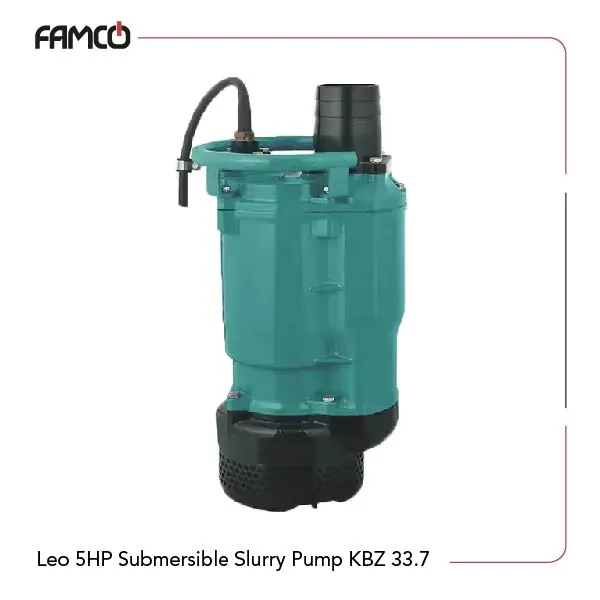

Leo 5HP Submersible Slurry Pump KBZ 33.7 Specifications
Leo 5HP submersible slurry pump KBZ 33.7 features a cast iron hose coupling, upper cover, motor body, and pump body to enhance durability and longevity. The mechanical seal of this product is made of Sic-Sic/Sic-Sic, with excellent sealing performance. The impeller of this Leo submersible pump is crafted from high chrome alloy, making it resistant to wear and tear. With a maximum liquid temperature of +40℃ and a maximum immersion depth of 25 meters, this pump is designed for demanding applications. This Leo submersible pump operates with a copper winding and has an insulation class of B, delivering efficient performance. The protection class is IP68, which is suitable for wet environments. It offers a maximum flow rate of 55 m³/h (0.92 m³/min) and features an impeller passage of 8.5 mm, making it ideal for various fluid transfer tasks.
| Specification | Value |
| Max. liquid temperature | +40℃ |
| Max. Immersion depth | 25 m |
| Insulation class | B |
| Protection class | IP68 |
| Power (kW) | 3.7 |
| Power (HP) | 5 |
| Max head | 29 |
| Max Flow rate (m³ /h) | 55 |
| Max Flow rate (l /min) | 920 |
| Impeller Passage (mm) | 8.5 |
Leo 5HP Submersible Slurry Pump KBZ 33.7 Materials
- Hose Coupling: Cast Iron
- Upper Cover: Cast Iron
- Handle: Steel
- Pump Body: Cast Iron
- Mechanical Seal: Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW )
- Impeller: High Chrome alloy
- Inlet Plate: Ductile Iron
- Winding: Copper

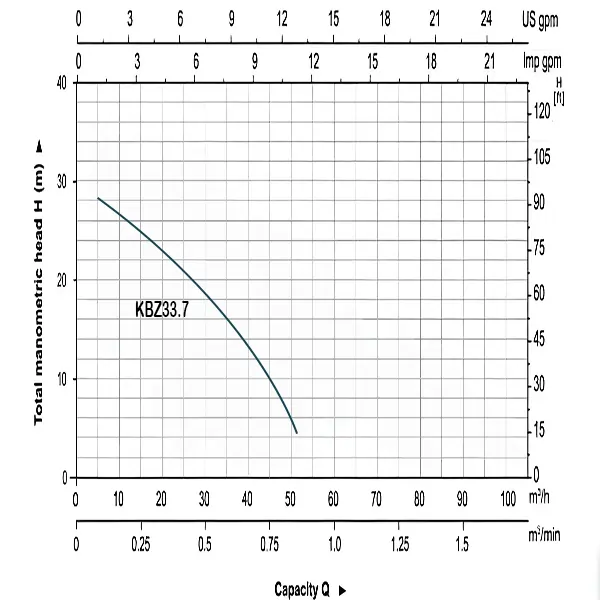

Leo 5HP Submersible Slurry Pump KBZ 33.7 Performance Curve
Leo 5HP Submersible Slurry Pump KBZ 33.7 Applications
- Irrigation systems for agriculture
- Drainage in construction sites
- Water transfer in industrial processes
- Flood control and management
Leo 5HP Submersible Slurry Pump KBZ 33.7 Benefits
- Durable cast iron construction for longevity
- High flow rate for efficient water transfer
- IP68 protection for submerged operation
- Versatile applications across various industries
Leo 5HP Submersible Slurry Pump KBZ 33.7 Price List
| No. | Name | Price |
| 1 | Leo 5HP Submersible Slurry Pump KBZ 33.7 Price | Contact us |
