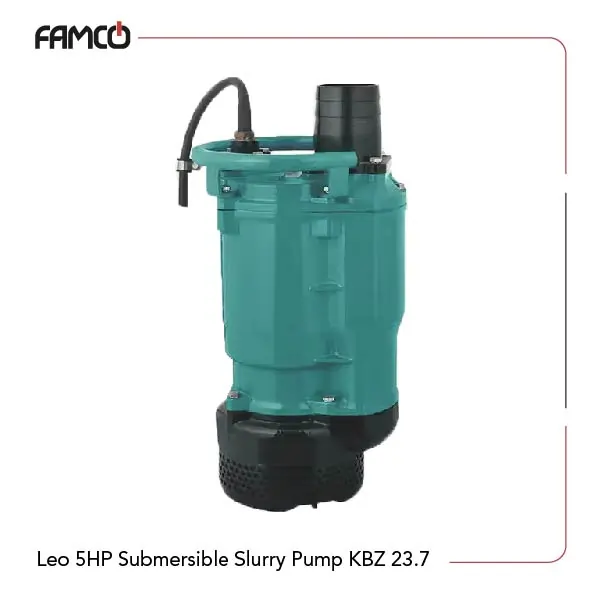

Leo 5HP Submersible Slurry Pump KBZ 23.7 Specifications
Leo 5HP submersible slurry pump KBZ 23.7 features a powerful cast iron construction for durability, including the hose coupling, motor cover, and upper cover. The pump body is also made of cast iron to reach a lasting performance. This Leo submersible pump is equipped with a high chrome alloy impeller and agitator, which enhances efficiency and reliability. The mechanical seal varies based on power, using Sic-Sic/Carbon-Sic for lower power and Sic-Sic/Sic-Sic for higher power. The maximum liquid temperature is +40℃ and it has an immersion depth of up to 25 meters. The winding is made of copper to provide excellent conductivity, while the insulation class is rated B for thermal protection. It operates at a power of 3.7 kW (5 HP) and achieves a maximum head of 34 meters. The pump handles a maximum flow rate of 29 m³/h (0.48 m³/min) with an impeller passage of 8.5 mm which is suitable for demanding tasks.
| Specification | Value | |
| Max. liquid temperature | +40℃ | |
| Max. Immersion depth | 25 m | |
| Insulation class | B | |
| Protection class | IP68 | |
| Power (kW) | 3.7 | |
| Power (HP) | 5 | |
| Max head | 34 | |
| Max Flow (m³ /h) | 29 | |
| Max Flow (l /min) | 480 | |
| Impeller Passage (mm) | 8.5 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | Single-phase | 220 |
| Three-phase | 380 | |
Leo 5HP Submersible Slurry Pump KBZ 23.7 Materials
- Hose Coupling: Cast Iron
- Handle: Steel
- Motor Cover: Cast Iron
- Upper Cover: Cast Iron
- Pump body: Cast Iron
- Mechanical Seal: Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW)
- Impeller: High Chrome alloy
- Inlet Plate: Ductile Iron
- Agitator: High Chrome alloy
- Winding: Copper

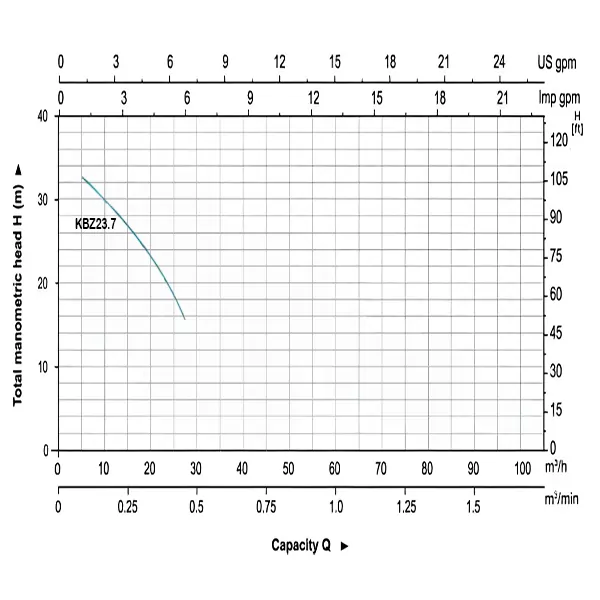

Leo 5HP Submersible Slurry Pump KBZ 23.7 Performance Curve
Leo 5HP Submersible Slurry Pump KBZ 23.7 Applications
- Industrial water transfer
- Agricultural irrigation systems
- Construction site dewatering
- Wastewater management
Leo 5HP Submersible Slurry Pump KBZ 23.7 Benefits
- Durable cast iron construction for longevity
- High efficiency with a maximum flow rate of 29 m³/h
- IP68 protection for reliable outdoor use
- Versatile applications in various industries
Leo 5HP Submersible Slurry Pump KBZ 23.7 Price List
| No. | Name | Price |
| 1 | Leo 5HP Submersible Slurry Pump KBZ 23.7 Price | Contact us |
