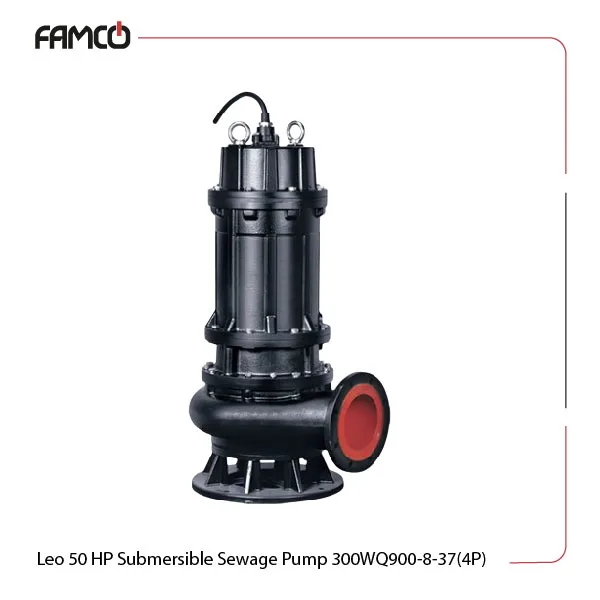

Leo 50 HP Submersible Sewage Pump 300WQ900-8-37(4P) Specifications
This powerful pump features a maximum immersion depth of 25 meters. This Leo pump operates efficiently at a liquid temperature of up to +40°C and supports a pH range of 5 to 9. The copper winding ensures durability and reliability, while the insulation class B provides adequate protection against overheating. This sewage pump is built with a protection degree of IP68 to withstand harsh conditions. These submersible pumps deliver a power output of 37 kW (50 HP) and can achieve a maximum head of 22 meters, which is more than impressive. The exceptional flow rate of 1200 m³/h at a speed of 1500 rpm makes it ideal for various demanding tasks. It operates on a three-phase voltage of 380 V and features a reliable Sic-Sic mechanical seal for enhanced longevity.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 37 |
| Power (HP) | 50 |
| Max. head (m) | 22 |
| Max. flow rate (m3/h) | 1200 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 50 HP Submersible Sewage Pump 300WQ900-8-37(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic

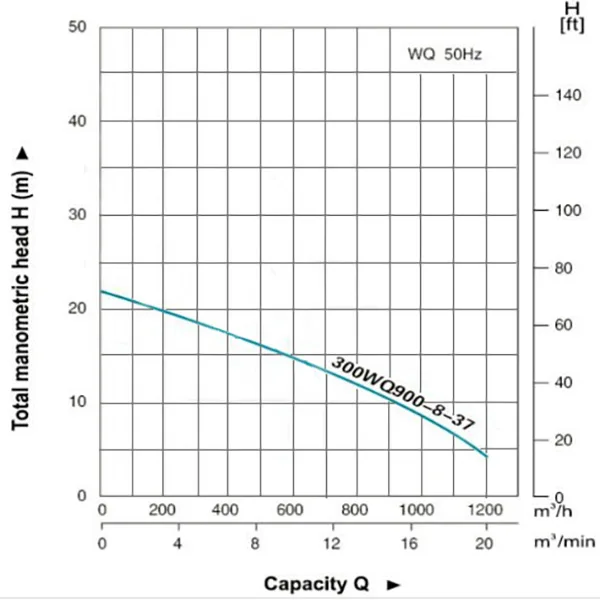

Leo 50 HP Submersible Sewage Pump 300WQ900-8-37(4P) Performance Curve
Leo 50 HP Submersible Sewage Pump 300WQ900-8-37(4P) Applications
- Deep well pumping
- Industrial water supply
- Irrigation systems
- Wastewater management
Leo 50 HP Submersible Sewage Pump 300WQ900-8-37(4P) Benefits
- High efficiency with a flow rate of 1200 m³/h
- Durable copper winding for long-lasting performance
- IP68 rating ensures protection against water ingress
- Versatile use in various applications including irrigation and industrial supply
Leo 50 HP Submersible Sewage Pump 300WQ900-8-37(4P) Price List
| No. | Name | Price |
| 1 | Leo 50 HP Submersible Sewage Pump 300WQ900-8-37(4P) Price | Contact us |
