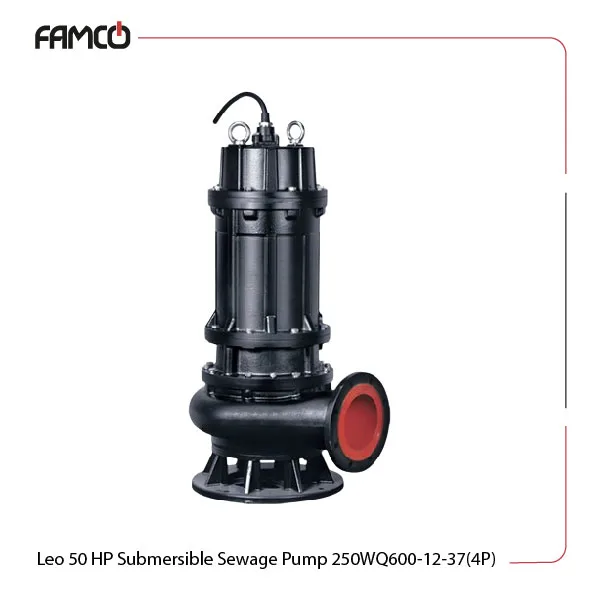

Leo 50 HP Submersible Sewage Pump 250WQ600-12-37(4P)

Leo 50 HP Submersible Sewage Pump 250WQ600-12-37(4P) Specifications

This powerful pump features a maximum immersion depth of 25 meters. It operates efficiently at a liquid temperature of up to +40 degrees Celsius. This Leo submersible pump runs on a frequency of 50Hz and is designed to handle liquids with a pH value ranging from 5 to 9. Its winding is made of durable copper. The insulation class is rated B, which provides adequate protection against electrical hazards. With an IP68 protection degree, this pump is highly resistant to dust and water ingress. It offers users a power output of 37 kW (50 HP) and can achieve a maximum head of 32 meters. The impressive flow rate reaches up to 720 m3/h, with a speed of 1500 rpm. This series of sewage pumps operates on a three-phase voltage of 380V and features a Sic-Sic mechanical seal for enhanced durability.

Specification	Value
Max. immersion depth (m)	25
Liquid temperature (℃)	+40
Frequency	50Hz
Liquid PH value	5-9
Insulation class	B
Protection degree	IP68
Power (kW)	37
Power (HP)	50
Max. head (m)	32
Max. flow rate (m3/h)	720
Speed (rpm)	1500
Three-phase voltage (V)	380

Leo 50 HP Submersible Sewage Pump 250WQ600-12-37(4P) Materials

• Winding: copper
• Mechanical seal: Sic-Sic/Sic-Sic

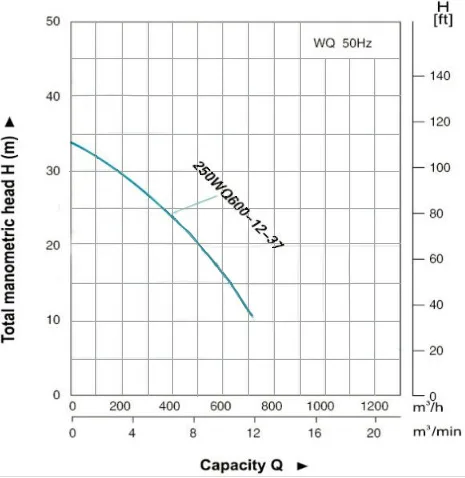

Leo 50 HP Submersible Sewage Pump 250WQ600-12-37(4P) Performance Curve

Leo 50 HP Submersible Sewage Pump 250WQ600-12-37(4P) Applications

• Deep well water extraction
• Irrigation systems
• Industrial water supply
• Wastewater management



Leo 50 HP Submersible Sewage Pump 250WQ600-12-37(4P) Benefits

• High efficiency with a maximum flow rate of 720 m3/h
• Durable copper winding for long-lasting performance
• IP68 rating ensures protection against water and dust
• Versatile use in various applications from agriculture to industry



Leo 50 HP Submersible Sewage Pump 250WQ600-12-37(4P) Price List

No.	Name	Price
1	Leo 50 HP Submersible Sewage Pump 250WQ600-12-37(4P) Price	Contact us
