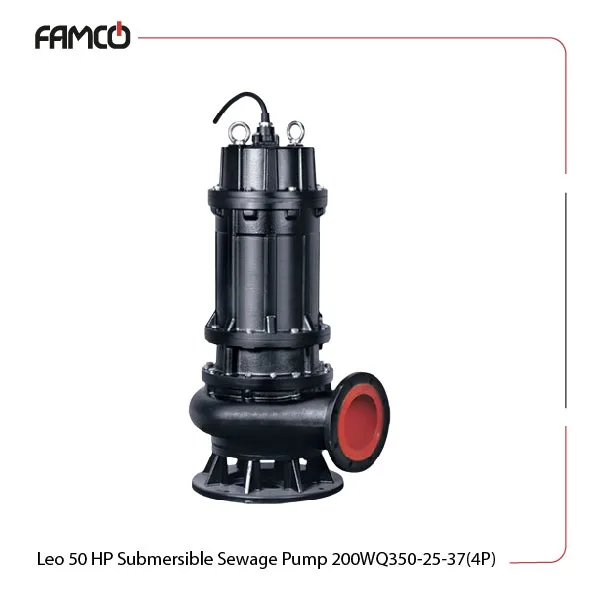

Leo 50 HP Submersible Sewage Pump 200WQ350-25-37(4P) Specifications
This powerful pump is designed for high performance in various applications. A maximum immersion depth of 25 meters has enabled this Leo pump to handle liquid temperatures up to +40°C. The pump operates at a frequency of 50Hz and is suitable for liquids with a pH value ranging from 5 to 9. This sewage pump features durable copper windings and has an insulation class of B, ensuring reliability and safety. The protection degree is IP68, making it suitable for submerged operations. With a power output of 37 kW (50 HP), this Leo submersible pump can achieve a maximum head of 38 meters and a flow rate of 500 m³/h. Operating at a speed of 1500 rpm, this pump requires a three-phase voltage of 380V and is equipped with a Sic-Sic mechanical seal for enhanced durability.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 37 |
| Power (HP) | 50 |
| Max. head (m) | 38 |
| Max. flow rate (m3/h) | 500 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 50 HP Submersible Sewage Pump 200WQ350-25-37(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 50 HP Submersible Sewage Pump 200WQ350-25-37(4P) Applications
- Water supply systems
- Irrigation and agriculture
- Industrial fluid transfer
- Wastewater management
Leo 50 HP Submersible Sewage Pump 200WQ350-25-37(4P) Benefits
- High efficiency with a maximum flow rate of 500 m³/h
- Durable construction with copper windings
- Suitable for various liquid types with a pH of 5-9
- Reliable operation with IP68 protection for submerged use
Leo 50 HP Submersible Sewage Pump 200WQ350-25-37(4P) Price List
| No. | Name | Price |
| 1 | Leo 50 HP Submersible Sewage Pump 200WQ350-25-37(4P) Price | Contact us |
