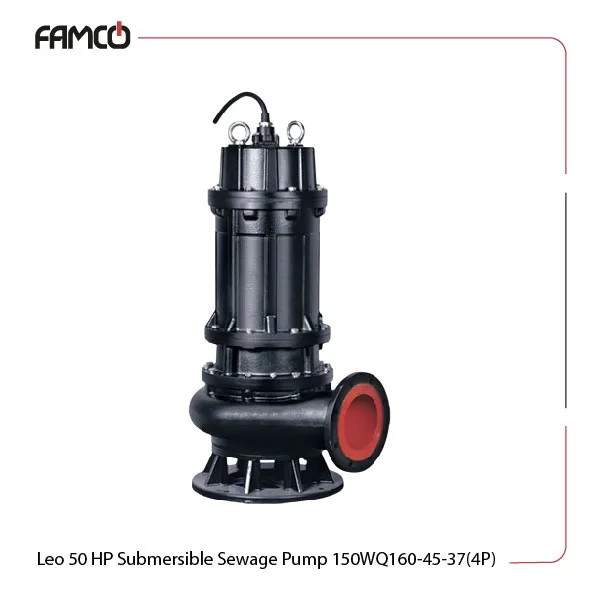

Leo 50 HP Submersible Sewage Pump 150WQ160-45-37(4P) Specifications
This powerful pump is designed for heavy-duty applications. This Leo pump can handle a maximum immersion depth of 25 meters and operates efficiently at a liquid temperature of up to +40°C. The pump runs on a frequency of 50Hz and is suitable for liquids with a pH value between 5 and 9. Its winding is made of durable copper, so it lasts under ongoing operations. An insulation class of B helps it provide excellent protection against electrical hazards. These submersible pumps have a high protection degree of IP68. It has a power output of 37 kW (50 HP) and can achieve a maximum head of 43 meters, with a flow rate of up to 380 m3/h. Operating at a speed of 1500 rpm, this submersible pump requires a three-phase voltage of 380V. The mechanical seal is made of Sic-Sic/Sic-Sic, so it requires minimal leakage and maintenance.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 37 |
| Power (HP) | 50 |
| Max. head (m) | 43 |
| Max. flow rate (m3/h) | 380 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 50 HP Submersible Sewage Pump 150WQ160-45-37(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 50 HP Submersible Sewage Pump 150WQ160-45-37(4P) Applications
- Wastewater management
- Irrigation systems
- Industrial fluid transfer
- Construction site dewatering
Leo 50 HP Submersible Sewage Pump 150WQ160-45-37(4P) Benefits
- High efficiency with a maximum flow rate of 380 m3/h
- Durable copper winding for long-lasting performance
- IP68 protection for reliable submersible operation
- Versatile applications across various industries
Leo 50 HP Submersible Sewage Pump 150WQ160-45-37(4P) Price List
| No. | Name | Price |
| 1 | Leo 50 HP Submersible Sewage Pump 150WQ160-45-37(4P) Price | Contact us |
There are no reviews yet.
