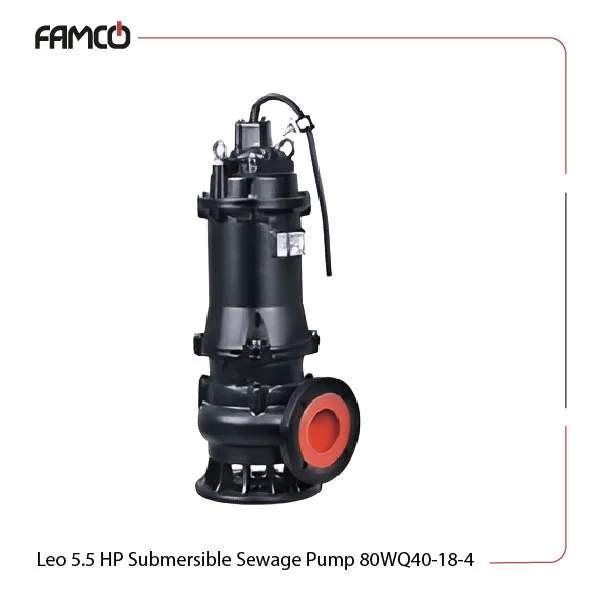

Leo 5.5 HP Submersible Sewage Pump 80WQ40-18-4 Specifications
This powerful pump’s considerable immersion depth reaches a maximum depth of 25 meters. This Leo pump operates efficiently at a liquid temperature of up to +40°C and is suitable for liquids with a pH value ranging from 5 to 9. This collection of submersible Leo submersible pumps features a powerful copper winding. Classified under insulation class B and a protection degree of IP68, it is well-suited for submerged use. The pump delivers a power output of 4 kW (5.5 HP) and can achieve a maximum head of 24 meters. This collection of Leo sewage pumps has an impressive maximum flow rate of 80 m³/h and operates at a speed of 3000 rpm. Designed for three-phase voltage of 380 V, it includes a mechanical seal made of Sic-Sic/Carbon-Ceramic for enhanced performance and longevity.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Max. head (m) | 24 |
| Max. flow rate (m3/h) | 80 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
dLeo 5.5 HP Submersible Sewage Pump 80WQ40-18-4 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 5.5 HP Submersible Sewage Pump 80WQ40-18-4 Applications
- Irrigation systems in agriculture
- Industrial water transfer
- Wastewater management
- Cooling systems in manufacturing
Leo 5.5 HP Submersible Sewage Pump 80WQ40-18-4 Benefits
- High efficiency with a maximum flow rate of 80 m³/h
- Durable construction with copper winding and IP68 protection
- Versatile use for various liquid types and temperatures
- Reliable performance with a mechanical seal for longevity
Leo 5.5 HP Submersible Sewage Pump 80WQ40-18-4 Price List
| No. | Name | Price |
| 1 | Leo 5.5 HP Submersible Sewage Pump 80WQ40-18-4 Price | Contact us |
