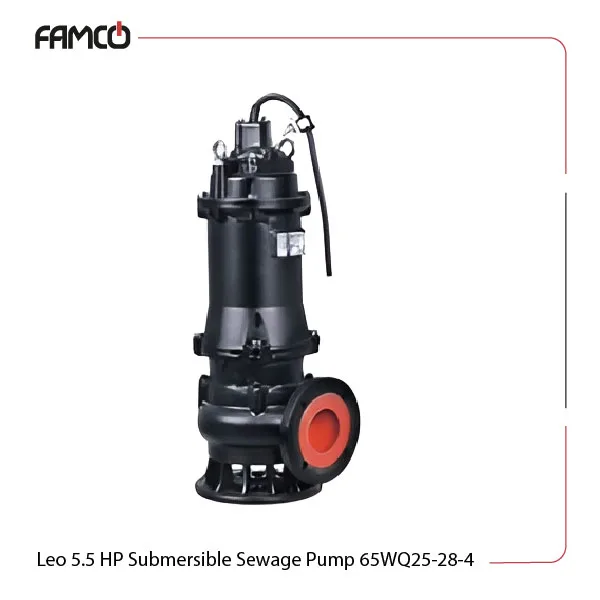

Leo 5.5 HP Submersible Sewage Pump 65WQ25-28-4 Specifications
This powerful pump is designed for various applications, featuring a maximum immersion depth of 25 meters and a liquid temperature tolerance of up to +40°C. This line of Leo sewage pumps operates at a frequency of 50Hz and is suitable for liquids with a pH value ranging from 5 to 9. The winding is made of durable copper, which provides efficient performance. With an insulation class of B and a protection degree of IP68, this pump is built to withstand harsh conditions. It has a power output of 4 kW (5.5 HP) and can achieve a maximum head of 32 meters, along with a flow rate of 55 m³/h. Operating at a speed of 3000 rpm, this series of submersible pumps runs on a three-phase voltage of 380V. The mechanical seal is made of Sic-Sic/Carbon-Ceramic to provide sufficient sealing, leading to longevity.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Max. head (m) | 32 |
| Max. flow rate (m3/h) | 55 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 5.5 HP Submersible Sewage Pump 65WQ25-28-4 Materials
- Mechanical seal: Sic-Sic/Carbon-Ceramic
- Winding: copper
Leo 5.5 HP Submersible Sewage Pump 65WQ25-28-4 Applications
- Irrigation systems in agriculture
- Water supply for industrial processes
- Drainage in construction sites
- Aquaculture and fish farming
Leo 5.5 HP Submersible Sewage Pump 65WQ25-28-4 Benefits
- High efficiency with a maximum flow rate of 55 m³/h
- Durable copper winding for long-lasting performance
- IP68 protection for reliable outdoor use
- Versatile applications across different industries
Leo 5.5 HP Submersible Sewage Pump 65WQ25-28-4 Price List
| No. | Name | Price |
| 1 | Leo 5.5 HP Submersible Sewage Pump 65WQ25-28-4 Price | Contact us |
