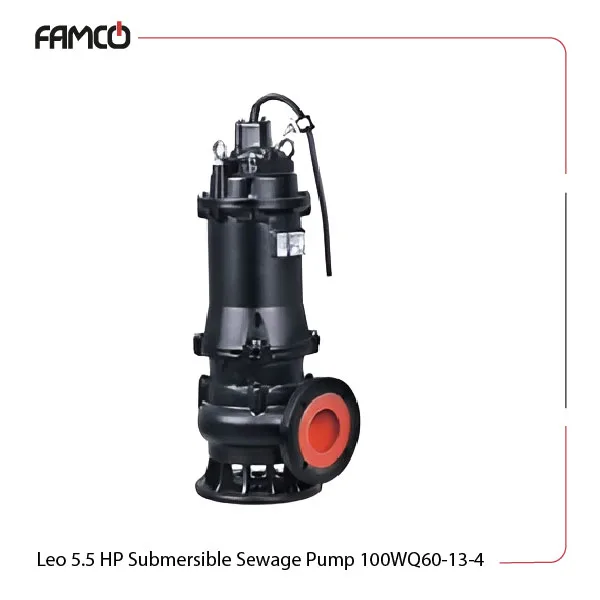

Leo 5.5 HP Submersible Sewage Pump 100WQ60-13-4 Specifications
This product is designed for efficient performance in various applications. It has a maximum immersion depth of 25 meters, making this Leo submersible pump suitable for deep water operations. The liquid temperature can reach up to +40°C, so it works with different liquids. With a frequency of 50Hz, this collection of Leo pumps operates smoothly and reliably. The pH value of the liquid should be between 5 and 9, which is ideal for many industrial and agricultural uses. The winding is made of copper, which is famous for its excellent conductivity and durability. It features an insulation class of B to guarantee safer operations that sewage pumps of this power often take up. The protection degree is IP68, meaning it is dust-tight and can withstand submersion in water. The power output is 4 kW (5.5 HP), with a maximum head of 24 meters and a flow rate of 89 m3/h. Operating at a speed of 3000 rpm, it is efficient and effective. The three-phase voltage is 380V, and it includes a mechanical seal made of Sic-Sic/Carbon-Ceramic for enhanced reliability.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Max. head (m) | 24 |
| Max. flow rate (m3/h) | 89 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 5.5 HP Submersible Sewage Pump 100WQ60-13-4 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 5.5 HP Submersible Sewage Pump 100WQ60-13-4 Applications
- Industrial water supply systems
- Agricultural irrigation
- Wastewater management
- Construction site dewatering
Leo 5.5 HP Submersible Sewage Pump 100WQ60-13-4 Benefits
- High efficiency with a maximum flow rate of 89 m3/h
- Durable construction with copper winding
- Reliable operation in wet conditions (IP68 rating)
- Versatile use in various applications
Leo 5.5 HP Submersible Sewage Pump 100WQ60-13-4 Price List
| No. | Name | Price |
| 1 | Leo 5.5 HP Submersible Sewage Pump 100WQ60-13-4 Price | Contact us |
