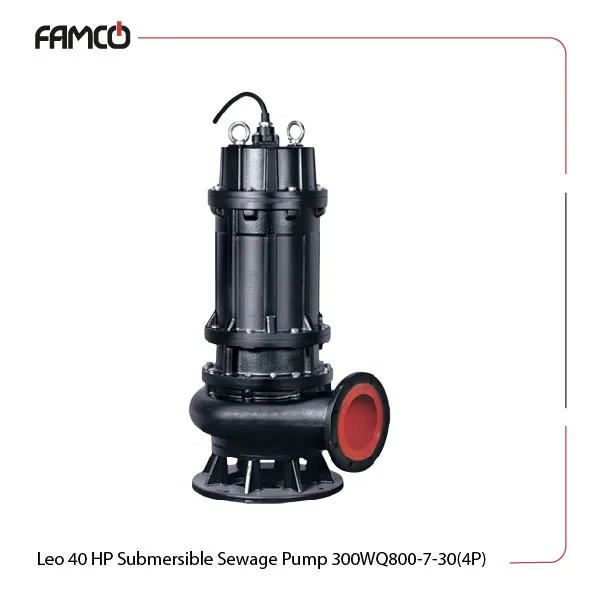

Leo 40 HP Submersible Sewage Pump 300WQ800-7-30(4P)

30 kW (40 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: Leo Pumps, Leo Submersible Pump

Overview of Leo 40 HP Submersible Sewage Pump 300WQ800-7-30(4P)

This 40 HP pump makes challenging water movement tasks a breeze. The 300WQ800-7-30(4P) has a powerful design that enables 25-meter deep immersions possible. It also operates in a three-phase mode of 380V and 50 Hz frequency to match most present setups. A 1000 m3/h flow rate proves this pumping solution has all it takes for professional setups. If head height is a concern, this Leo pump has a maximum head of 18 meters that suits most tasks that require elevation. The pump’s ability to handle significant depths and flow rates ensures efficiency in demanding situations. A sewage pump with these features stands out as a dependable choice for its quality and performance.

Leo 40 HP Submersible Sewage Pump 300WQ800-7-30(4P) Specifications

This powerful pump is designed for heavy-duty applications, featuring a maximum immersion depth of 25 meters. This collection of Leo sewage pumps tolerate a liquid temperature of up to +40°C. This submersible pump operates at a frequency of 50Hz and is suitable for liquids with a pH value ranging from 5 to 9. The winding is made of durable copper, ensuring efficient performance. With an insulation class of B and a protection degree of IP68, this Leo submersible pump is built to withstand harsh conditions. It delivers a power output of 30 kW (40 HP) and can achieve a maximum head of 18 meters. The impressive flow rate reaches up to 1000 m3/h, with a speed of 1500 rpm. It operates on a three-phase voltage of 380V and features a reliable Sic-Sic/Sic-Sic mechanical seal for enhanced durability.

Specification	Value
Max. immersion depth (m)	25
Liquid temperature (℃)	+40
Frequency	50Hz
Liquid PH value	5-9
Insulation class	B
Protection degree	IP68
Power (kW)	30
Power (HP)	40
Max. head (m)	18
Max. flow rate (m3/h)	1000
Speed (rpm)	1500
Three-phase voltage (V)	380

Leo 40 HP Submersible Sewage Pump 300WQ800-7-30(4P) Materials

Winding: copper
Mechanical seal: Sic-Sic/Sic-Sic

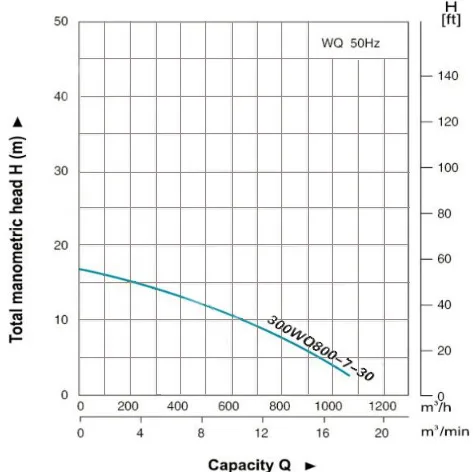

Leo 40 HP Submersible Sewage Pump 300WQ800-7-30(4P) Performance Curve

Leo 40 HP Submersible Sewage Pump 300WQ800-7-30(4P) Applications

Irrigation systems for agriculture
Industrial water supply and drainage
Construction site dewatering
Wastewater management

Leo 40 HP Submersible Sewage Pump 300WQ800-7-30(4P) Benefits

High efficiency with a maximum flow rate of 1000 m3/h
Durable construction with copper winding and IP68 protection
Versatile use in various pH environments (5-9)
Reliable performance with a mechanical seal for longevity

Leo 40 HP Submersible Sewage Pump 300WQ800-7-30(4P) Price List

No.	Name	Price
1	Leo 40 HP Submersible Sewage Pump 300WQ800-7-30(4P) Price	Contact us

Brand	Leo
Maximum immersion depth (m)	25
Maximum Liquid Temperature (°C)	40
Frequency (Hz)	50
Insulation Class	B
Degree of Protection	IP68
Power (kW)	30
Power (HP)	40
Maximum Delivery Head (m)	18
Maximum Flow Rate (m3/h)	1000
Speed (RPM)	1500
Voltage (V)	380
Mechanical Seal	Silicon Carbide/Silicon Carbide
Applications	Construction Site Dewatering, Drainage, Irrigation, Wastewater management
