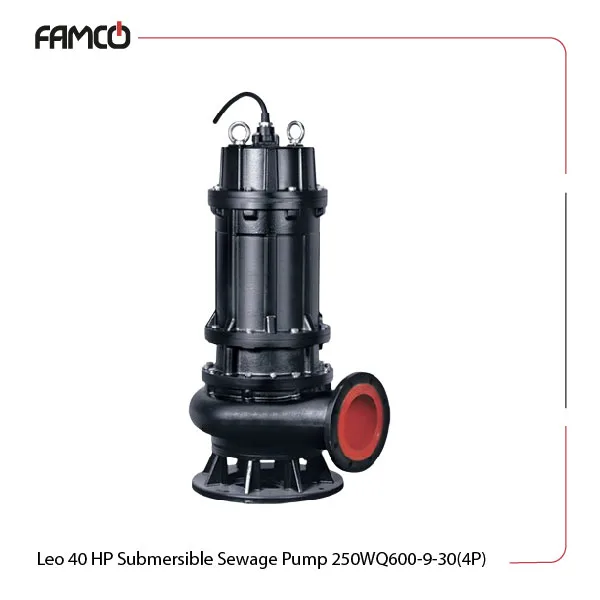

Leo 40 HP Submersible Sewage Pump 250WQ600-9-30(4P) Specifications
This powerful pump boasts a maximum immersion depth of 25 meters, making it suitable for deep applications. This Leo pump operates efficiently at a liquid temperature of up to +40°C and supports a pH range of 5 to 9. The winding is made of durable copper. With an insulation class of B, this Leo submersible pump provides excellent protection against electrical hazards. The pump has a high protection degree of IP68, making it resistant to dust and water ingress. It delivers a power output of 30 kW (40 HP) and can achieve a maximum head of 28 meters. The impressive flow rate reaches up to 600 m³/h while running at a speed of 1500 rpm. Designed for three-phase voltage of 380 V, this series of sewage pumps features a reliable Sic-Sic mechanical seal for enhanced durability.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 30 |
| Power (HP) | 40 |
| Max. head (m) | 28 |
| Max. flow rate (m3/h) | 600 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 40 HP Submersible Sewage Pump 250WQ600-9-30(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic

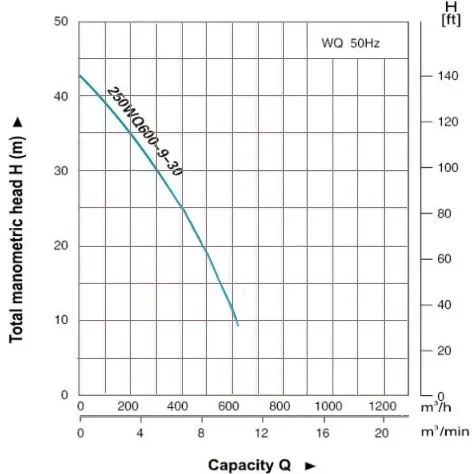

Leo 40 HP Submersible Sewage Pump 250WQ600-9-30(4P) Performance Curve
Leo 40 HP Submersible Sewage Pump 250WQ600-9-30(4P) Applications
- Industrial water transfer
- Agricultural irrigation
- Construction site dewatering
- Wastewater management
Leo 40 HP Submersible Sewage Pump 250WQ600-9-30(4P) Benefits
- High flow rate of 600 m³/h for efficient operation
- Durable copper winding for long-lasting performance
- IP68 rating ensures protection against water and dust
- Versatile for various liquid types with a pH range of 5-9
Leo 40 HP Submersible Sewage Pump 250WQ600-9-30(4P) Price List
| No. | Name | Price |
| 1 | Leo 40 HP Submersible Sewage Pump 250WQ600-9-30(4P) Price | Contact us |
