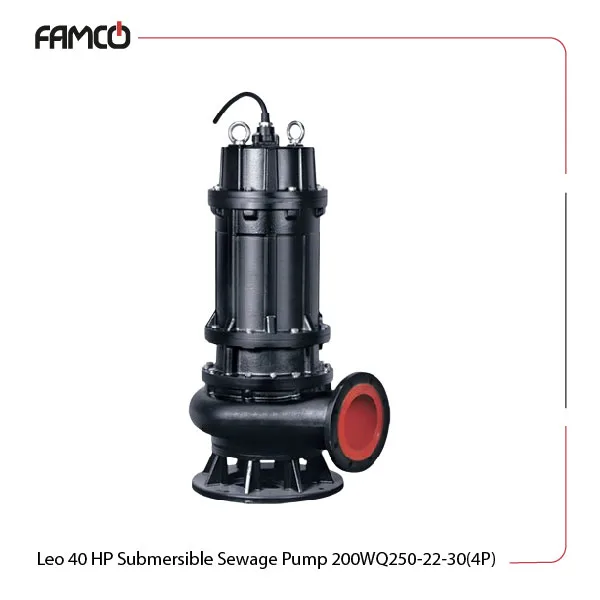

Leo 40 HP Submersible Sewage Pump 200WQ250-22-30(4P)

Leo 40 HP Submersible Sewage Pump 200WQ250-22-30(4P)) Specifications

This product is designed for high-performance applications, with a maximum immersion depth of 25 meters and a liquid temperature tolerance of up to +40°C. This Leo submersible pump operates at a frequency of 50Hz and is suitable for liquids with a pH value ranging from 5 to 9. The winding is made of durable copper, so it operates efficiently and performs well. An insulation class of B and a protection degree of IP68 have enabled this product to withstand harsh conditions. This Leo sewage pump has a high power output of 30 kW (40 HP) and can achieve a maximum head of 34 meters.

These features, combined with a flow rate of 500 m3/h, mean it delivers class-leading performance. Operating at a speed of 1500 rpm, this pump requires a three-phase voltage of 380V. The mechanical seal is designed with Sic-Sic materials for enhanced reliability.

Specification	Value
Max. immersion depth (m)	25
Liquid temperature (℃)	+40
Frequency	50Hz
Liquid PH value	5-9
Insulation class	B
Protection degree	IP68
Power (kW)	30
Power (HP)	40
Max. head (m)	34
Max. flow rate (m3/h)	500
Speed (rpm)	1500
Three-phase voltage (V)	380

Leo 40 HP Submersible Sewage Pump 200WQ250-22-30(4P) Materials

• Winding: copper
• Mechanical seal: Sic-Sic/Sic-Sic

Leo 40 HP Submersible Sewage Pump 200WQ250-22-30(4P) Applications

• Water transfer in industrial settings
• Irrigation systems for agriculture
• Drainage in construction sites
• Cooling systems in power plants



Leo 40 HP Submersible Sewage Pump 200WQ250-22-30(4P) Benefits

• High efficiency with a maximum flow rate of 500 m3/h
• Durable copper winding for long-lasting performance
• IP68 protection for reliable operation in wet environments
• Versatile applications across various industries



Leo 40 HP Submersible Sewage Pump 200WQ250-22-30(4P) Price List

No.	Name	Price
1	Leo 40 HP Submersible Sewage Pump 200WQ250-22-30(4P) Price	Contact us
