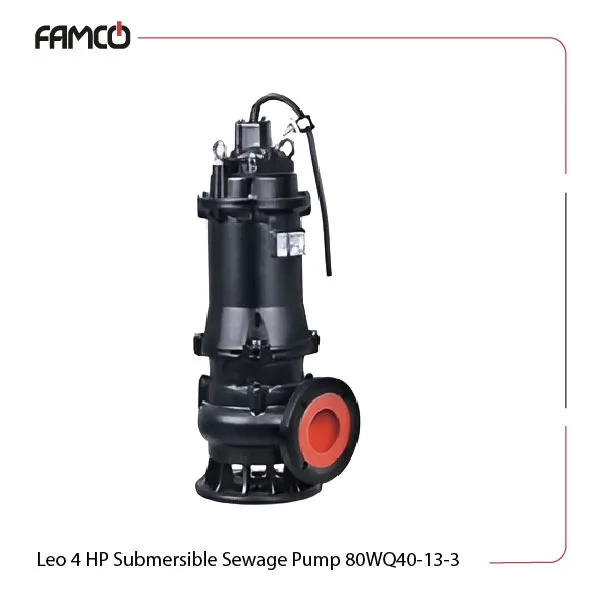

Leo 4 HP Submersible Sewage Pump 80WQ40-13-3 Specifications
This product stands for performance in demanding environments. This Leo submersible pump has a maximum immersion depth of 25 meters for deep applications. The liquid temperature of this submersible pump can reach up to 40 degrees Celsius. With a frequency of 50Hz, this series of Leo pumps operates efficiently. The pH range of 5 to 9 allows for compatibility with different liquids. The winding is made of copper, which enhances conductivity and durability. It also features an insulation class of B for safety measures. The protection degree is IP68, providing these sewage pumps excellent resistance to dust and water. The power output is 3 kW, equivalent to 4 HP, delivering strong performance.
It can achieve a maximum head of 19 meters and a flow rate of 88 m3/h, making it ideal for high-demand tasks. Operating at a speed of 3000 rpm, this pump ensures quick and efficient liquid movement. The three-phase voltage is 380V, and it includes a mechanical seal made of Sic-Sic/Carbon-Ceramic for enhanced reliability.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Max. head (m) | 19 |
| Max. flow rate (m3/h) | 88 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 4 HP Submersible Sewage Pump 80WQ40-13-3 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 4 HP Submersible Sewage Pump 80WQ40-13-3 Applications
- Irrigation systems in agriculture
- Water supply for industrial processes
- Drainage in construction sites
- Aquaculture and fish farming
Leo 4 HP Submersible Sewage Pump 80WQ40-13-3 Benefits
- High efficiency with a flow rate of 88 m3/h
- Durable construction with copper winding
- Excellent protection against water and dust (IP68)
- Versatile use in various liquid types and temperatures
Leo 4 HP Submersible Sewage Pump 80WQ40-13-3 Price List
| No. | Name | Price |
| 1 | Leo 4 HP Submersible Sewage Pump 80WQ40-13-3 Price | Contact us |
