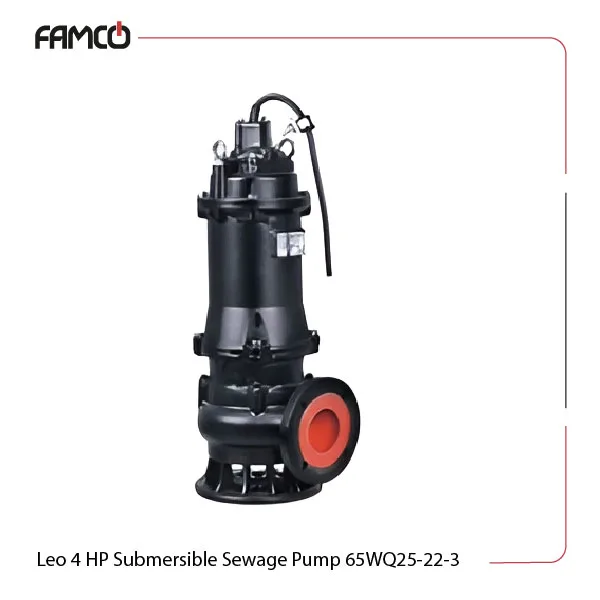

Leo 4 HP Submersible Sewage Pump 65WQ25-22-3 Specifications
This product features a maximum immersion depth of 25 meters for deep applications. This series of Leo submersible pumps handles substantial liquid temperatures of up to 40 degrees Celsius and operates at a frequency of 50Hz. The liquid pH range is between 5 and 9, ensuring compatibility with a wide range of fluids. The winding is made of copper to provide excellent conductivity. This Leo submersible pump features a B insulation class, ensuring safety and reliability. The protection degree is IP68, meaning it is dust-tight and can withstand submersion in water. The power output is 3 kW (4 HP), with a maximum head of 26 meters and a flow rate of 55 m3/h. Operating at a speed of 3000 rpm, this sewage pump requires a three-phase voltage of 380V. The mechanical seal is made of Sic-Sic/Carbon-Ceramic to enhance durability and performance.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Max. head (m) | 26 |
| Max. flow rate (m3/h) | 55 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 4 HP Submersible Sewage Pump 65WQ25-22-3 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 4 HP Submersible Sewage Pump 65WQ25-22-3 Applications
- Irrigation systems in agriculture
- Industrial water supply and drainage
- Construction site dewatering
- Wastewater management
Leo 4 HP Submersible Sewage Pump 65WQ25-22-3 Benefits
- High efficiency with a flow rate of 55 m3/h
- Durable construction with copper winding
- Reliable operation in harsh conditions due to IP68 rating
- Versatile use across various industries
Leo 4 HP Submersible Sewage Pump 65WQ25-22-3 Price List
| No. | Name | Price |
| 1 | Leo 4 HP Submersible Sewage Pump 65WQ25-22-3 Price | Contact us |
