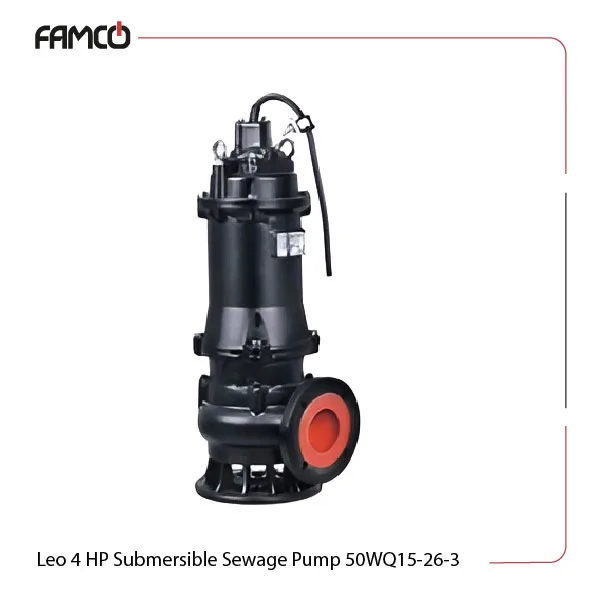

Leo 4 HP Submersible Sewage Pump 50WQ15-26-3 Specifications
This product is designed for high-performance applications with a maximum immersion depth of 25 meters. This submersible Leo sewage pump operates efficiently at a liquid temperature of up to +40°C and is suitable for liquids with a pH value ranging from 5 to 9. The winding is made of durable copper, ensuring longevity and reliability. An insulation class of B helps it provide excellent protection against electrical hazards. The device has a high IP68 protection degree, making it resistant to dust and water ingress. It delivers a power output of 3 kW (4 HP) and can achieve a maximum head of 29 meters, with a flow rate of 47 m³/h. Operating at a speed of 3000 rpm, this submersible pump requires a three-phase voltage of 380 V. The mechanical seal is constructed from Sic-Sic/Carbon-Ceramic to enhance its durability and performance in demanding environments.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Max. head (m) | 29 |
| Max. flow rate (m3/h) | 47 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 4 HP Submersible Sewage Pump 50WQ15-26-3 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 4 HP Submersible Sewage Pump 50WQ15-26-3 Applications
- Agricultural irrigation systems
- Construction site dewatering
- Wastewater treatment facilities
- Industrial liquid transfer processes
Leo 4 HP Submersible Sewage Pump 50WQ15-26-3 Benefits
- High efficiency with a maximum flow rate of 47 m³/h
- Durable construction with copper winding and ceramic seals
- IP68 rating for superior protection against water and dust
- Versatile applications across various industries
Leo 4 HP Submersible Sewage Pump 50WQ15-26-3 Price List
| No. | Name | Price |
| 1 | Leo 4 HP Submersible Sewage Pump 50WQ15-26-3 Price | Contact us |
