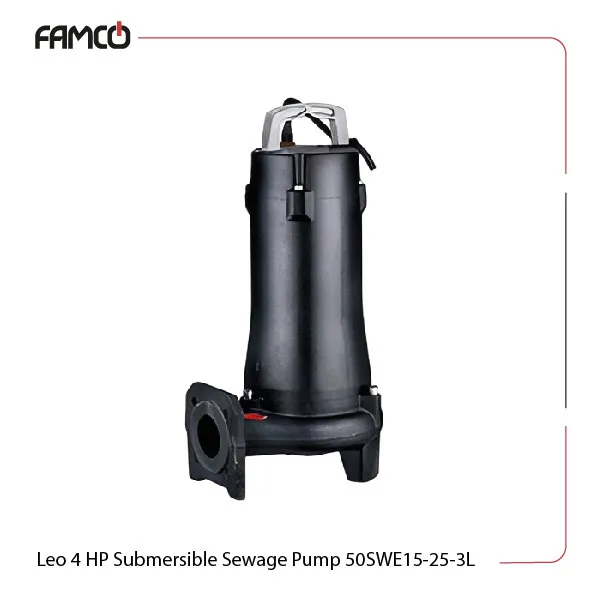

Leo 4 HP Submersible Sewage Pump 50SWE15-25-3L Specifications
This product is designed to handle liquids with a temperature range of 0 to 40 degrees Celsius. It also tolerates the pH value between 4 and 10. This Leo sewage pump can be immersed up to 5 meters deep. Operating at a frequency of 50Hz, this series of Leo pumps features a two-pole motor with an insulation class of F for safety reasons. The protection class is IPX8, which means it is fully protected against water ingress. With a power output of 4 HP (3 kW), this submersible pump has an impressive flow rate of 51 m3/h and can achieve a maximum head of 27 meters. It can handle solids up to 25 mm in diameter. The motor and impeller are made from HT200, while the mechanical seals consist of Sic/Carbon for the upper seal and Sic for the lower seal, ensuring reliable performance and longevity.
| Specification | Value |
| Liquid temperature | 0-40℃ |
| Liquid PH value | 4 – 10 |
| Max. Immersion depth | 5 m |
| Frequency | 50Hz |
| Pole number | 2 |
| Insulation class | F |
| Protection Class | IPX8 |
| Power (HP) | 4 |
| Power (kW) | 3 |
| Flow rate (m3/h) | 51 |
| Max. head (m) | 27 |
| Max. solids diameter (mm) | 25 |

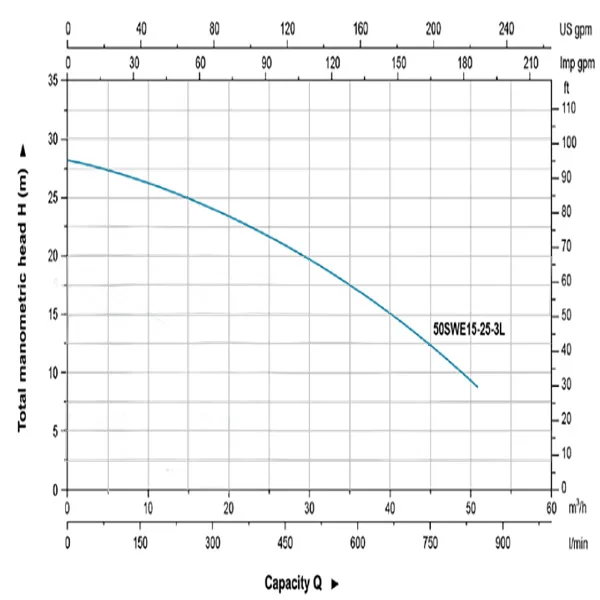

Leo 4 HP Submersible Sewage Pump 50SWE15-25-3L Performance Curve
Leo 4 HP Submersible Sewage Pump 50SWE15-25-3L Materials
- Motor body: HT200
- Impeller: HT200
- Upper mechanical seal: Sic/Carbon
- Lower mechanical seal: Sic
Leo 4 HP Submersible Sewage Pump 50SWE15-25-3L Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Wastewater management
- Construction site dewatering
Leo 4 HP Submersible Sewage Pump 50SWE15-25-3L Benefits
- High flow rate for efficient operation
- Durable construction for long-lasting use
- Versatile for various applications
- Waterproof design for reliable performance
Leo 4 HP Submersible Sewage Pump 50SWE15-25-3L Price List
| No. | Name | Price |
| 1 | Leo 4 HP Submersible Sewage Pump 50SWE15-25-3L Price | Contact us |
