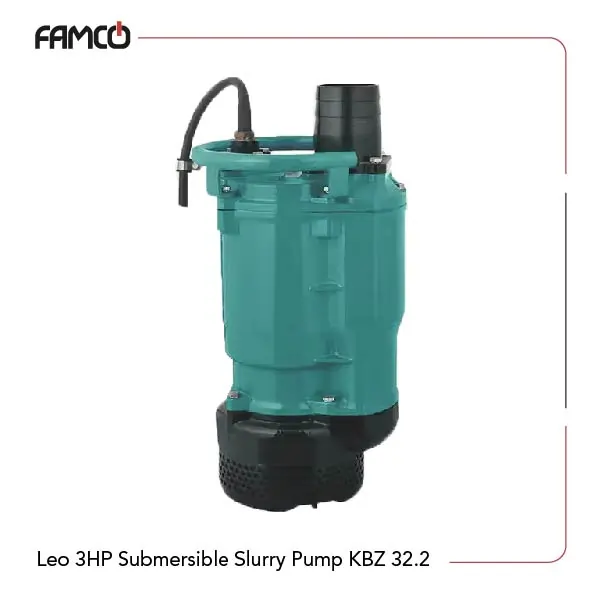

Leo 3HP Submersible Slurry Pump KBZ 32.2 Specifications
Leo 3HP submersible slurry pump KBZ 32.2 is built with a robust cast iron structure, ensuring durability and longevity. The hose coupling, upper cover, motor body, and pump body are all made from cast iron, providing excellent resistance to wear and tear. The mechanical seal of this Leo submersible pump features Sic-Sic/Sic-Sic technology, enhancing its reliability. The impeller and inlet plate are crafted from high chrome alloy, which improves performance and efficiency. This product has a maximum liquid temperature of +40℃ and a maximum immersion depth of 25 meters, that have made it suitable for various applications. For safety reasons along with an efficient operation, this pump functions using a copper winding and has an insulation class of B. The protection class is IP68 to make it resistant to dust and water particles. This pump has a power output of 2.2 kW (3 HP) and achieves a maximum head of 21 meters and a flow rate of 50 m³/h (0.83 m³/min). The impeller passage measures 8.5 mm, allowing for effective fluid movement.
| Specification | Value |
| Max. liquid temperature | +40℃ |
| Max. Immersion depth | 25 m |
| Insulation class | B |
| Protection class | IP68 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max head | 21 |
| Max Flow rate (m³ /h) | 50 |
| Max Flow rate (l /min) | 830 |
| Impeller Passage (mm) | 8.5 |
Leo 3HP Submersible Slurry Pump KBZ 32.2 Materials
- Winding: Copper
- Hose Coupling: Cast Iron
- Upper Cover: Cast Iron
- Handle: Steel
- Pump Body: Cast Iron
- Mechanical Seal: Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW )
- Impeller: High Chrome alloy
- Inlet Plate: Ductile Iron
- Motor Cover: Cast Iron
- Strainer: Steel

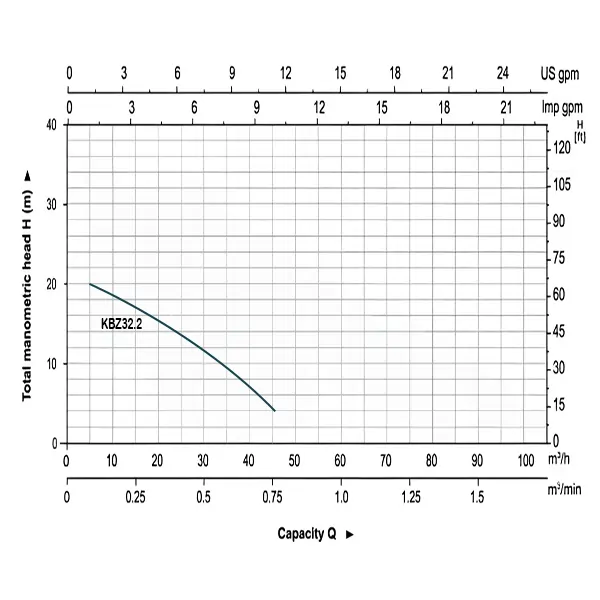

Leo 3HP Submersible Slurry Pump KBZ 32.2 Performance Curve
Leo 3HP Submersible Slurry Pump KBZ 32.2 Applications
- Irrigation systems in agriculture
- Water drainage in construction sites
- Industrial fluid transfer
- Wastewater management
Leo 3HP Submersible Slurry Pump KBZ 32.2 Benefits
- Durable cast iron construction for longevity
- High efficiency with a maximum flow rate of 50 m³/h
- IP68 protection for reliable outdoor use
- Versatile applications across various industries
Leo 3HP Submersible Slurry Pump KBZ 32.2 Price List
| No. | Name | Price |
| 1 | Leo 3HP Submersible Slurry Pump KBZ 32.2 Price | Contact us |
There are no reviews yet.
