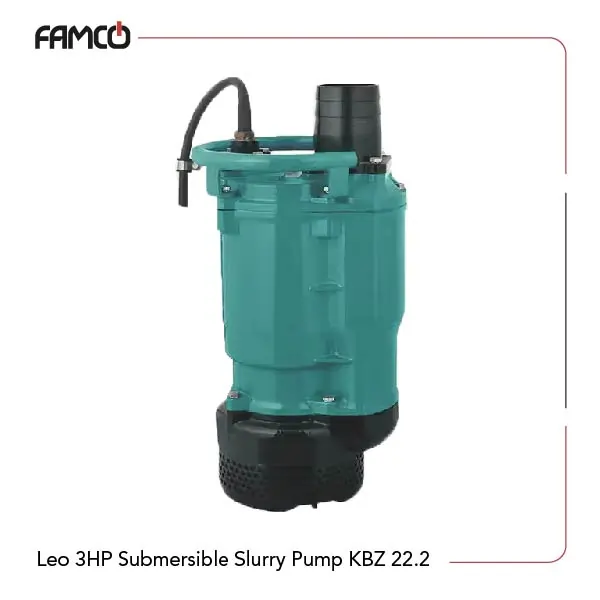

Leo 3HP Submersible Slurry Pump KBZ 22.2 Specifications
Leo 3HP submersible slurry pump KBZ 22.2 is designed to handle a maximum liquid temperature of +40℃. It boasts an impressive flow rate of 27 m³/h, translating to 0.45 m³/min. The impeller passage measures 8.5 mm, allowing for efficient fluid movement. This Leo pump has a maximum head of 26 meters and it can lift water to significant heights. This Leo submersible pump operates at a power of 2.2 kW (3 HP) and can be immersed up to 25 meters deep. Built with durable materials, it features a copper winding and is insulated to class B standards. The protection class is IP68, ensuring it is well-suited for wet environments. The pump’s body, upper cover, and motor cover are made from robust cast iron, while the mechanical seal is designed for reliability. The strainer is made of steel, and the impeller is crafted from high chrome alloy to give off excellent durability and performance.
| Specification | Value | |
| Max. liquid temperature | +40℃ | |
| Max Flow Rate (m³/h) | 27 | |
| Max Flow Rate (l/min) | 450 | |
| Impeller Passage (mm) | 8.5 | |
| Max head (m) | 26 | |
| Power (kW) | 2.2 | |
| Power (HP) | 3 | |
| Max. Immersion depth | 25 m | |
| Insulation class | B | |
| Protection degree | IP68 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | Single-phase | 220 |
| Three-phase | 380 | |
Leo 3HP Submersible Slurry Pump KBZ 22.2 Materials
- Winding: Copper
- Hose coupling: Cast Iron
- Upper Cover: Cast Iron
- Motor Cover: Cast Iron
- Mechanical Seal: Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW)
- Strainer: Steel
- Impeller: High Chrome alloy
- Handle: Steel
- Pump Body: Cast Iron

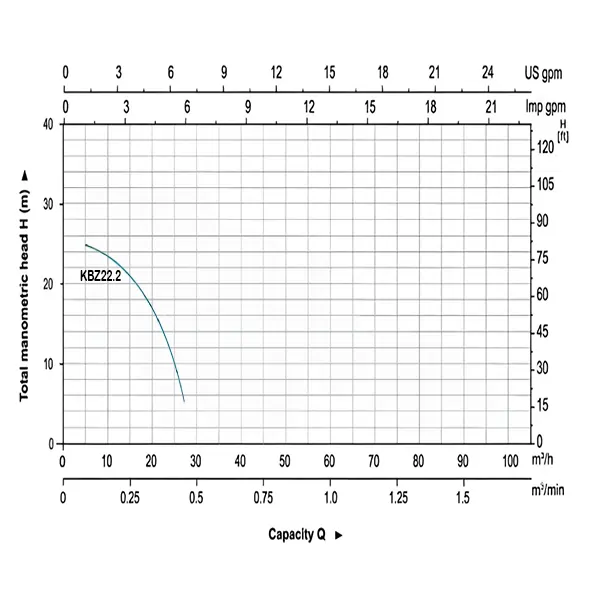

Leo 3HP Submersible Slurry Pump KBZ 22.2 Performance Curve
Leo 3HP Submersible Slurry Pump KBZ 22.2 Applications
- Water drainage in flooded areas
- Irrigation systems for agriculture
- Wastewater management in industrial settings
- Pumping water from wells or reservoirs
Leo 3HP Submersible Slurry Pump KBZ 22.2 Benefits
- High flow rate for efficient water movement
- Durable cast iron construction for longevity
- IP68 rating for reliable underwater operation
- Powerful performance with a maximum head of 26 meters
Leo 3HP Submersible Slurry Pump KBZ 22.2 Price List
| No. | Name | Price |
| 1 | Leo 3HP Submersible Slurry Pump KBZ 22.2 Price | Contact us |
There are no reviews yet.
