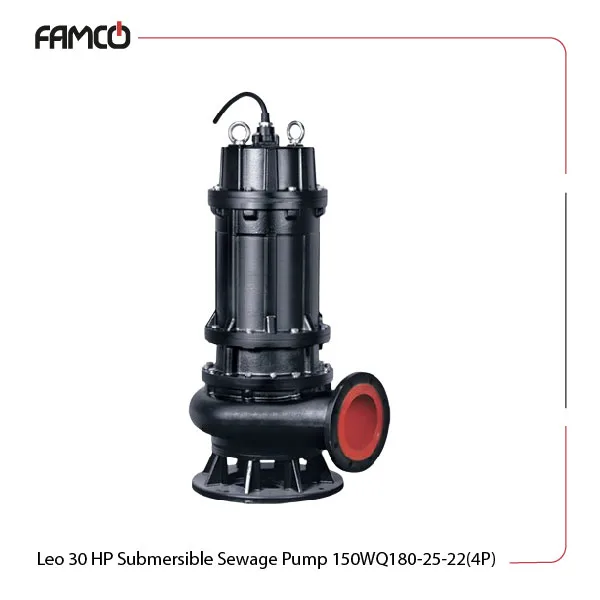

Leo 30 HP Submersible Sewage Pump 150WQ180-25-22(4P) Specifications
This powerful pump is designed for deep immersion, with a maximum depth of 25 meters. This Leo submersible pump operates efficiently at a liquid temperature of up to +40°C and supports a liquid pH range of 5 to 9. The pump features a sturdy copper winding and is classified under insulation class B. With a protection degree of IP68, this pump is well-suited for harsh environments. The pump delivers a substantial power output of 22 kW (30 HP) and can achieve a maximum head of 28 meters. It has an impressive flow rate of 330 m³/h at a speed of 1500 rpm, making this series of sewage pumps ideal for various applications. The three-phase voltage requirement is 380 V, and the pump is equipped with a Sic-Sic mechanical seal for enhanced performance.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 22 |
| Power (HP) | 30 |
| Max. head (m) | 28 |
| Max. flow rate (m3/h) | 330 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 30 HP Submersible Sewage Pump 150WQ180-25-22(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 30 HP Submersible Sewage Pump 150WQ180-25-22(4P) Applications
- Agricultural irrigation
- Wastewater management
- Industrial liquid transfer
- Cooling systems
Leo 30 HP Submersible Sewage Pump 150WQ180-25-22(4P) Benefits
- High efficiency with a flow rate of 330 m³/h
- Durable construction with copper winding
- IP68 rating for protection against water and dust
- Suitable for various liquid types with pH 5-9
Leo 30 HP Submersible Sewage Pump 150WQ180-25-22(4P) Price List
| No. | Name | Price |
| 1 | Leo 30 HP Submersible Sewage Pump 150WQ180-25-22(4P) Price | Contact us |
