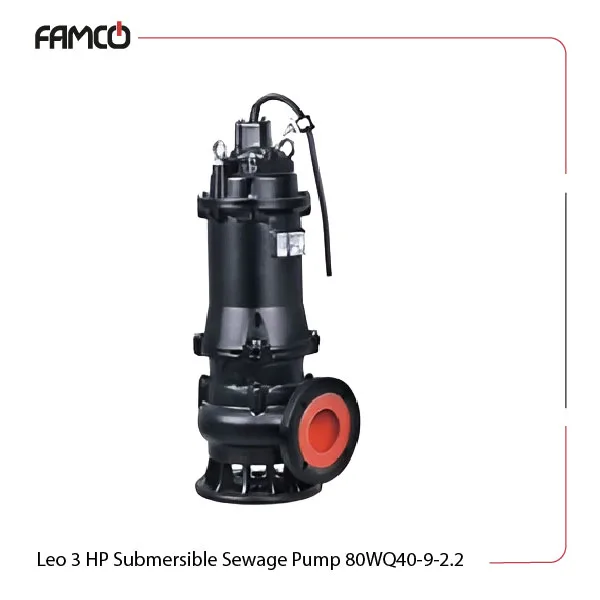

Leo 3 HP Submersible Sewage Pump 80WQ40-9-2.2 Specifications
This product features a maximum immersion depth of 25 meters. This submersible Leo submersible pump operates efficiently at a liquid temperature of up to +40 degrees Celsius. The frequency is set at 50Hz, which is compatible with standard electrical systems. The liquid pH range is between 5 and 9, which is ideal for various fluids. It has a copper winding for enhanced conductivity and durability. The insulation class is rated B, providing reliable protection against electrical faults. This series of Leo pumps has an IP68 protection degree, giving this product higher resistance to dust and water ingress. It delivers a power output of 2.2 kW (3 HP) and can achieve a maximum head of 16 meters. The maximum flow rate is an impressive 65 m3/h, and it operates at a speed of 3000 rpm. Designed for three-phase voltage of 380V, it features a powerful mechanical seal made of Sic-Sic/Carbon-Ceramic with lasting performance.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max. head (m) | 16 |
| Max. flow rate (m3/h) | 65 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 3 HP Submersible Sewage Pump 80WQ40-9-2.2 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 3 HP Submersible Sewage Pump 80WQ40-9-2.2 Applications
- Irrigation systems in agriculture
- Industrial water transfer
- Wastewater management
- Cooling systems in manufacturing
Leo 3 HP Submersible Sewage Pump 80WQ40-9-2.2 Benefits
- High efficiency with a maximum flow rate of 65 m3/h
- Durable construction with copper winding and ceramic seals
- Versatile use in various pH environments
- Reliable operation in harsh conditions due to IP68 rating
Leo 3 HP Submersible Sewage Pump 80WQ40-9-2.2 Price List
| No. | Name | Price |
| 1 | Leo 3 HP Submersible Sewage Pump 80WQ40-9-2.2 Price | Contact us |
