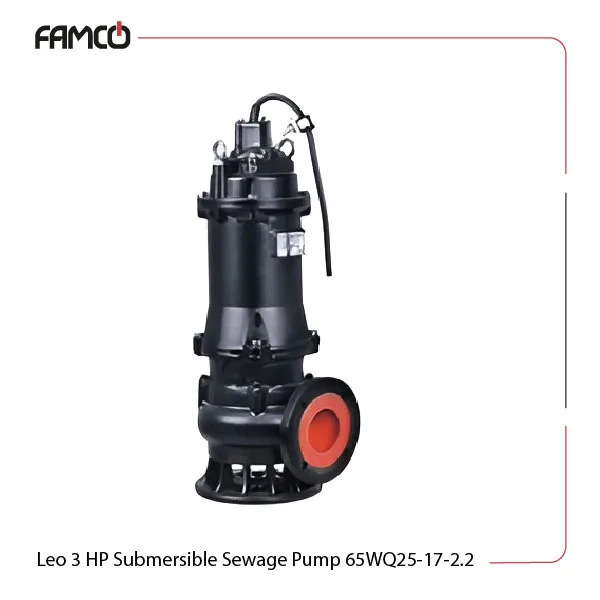

Leo 3 HP Submersible Sewage Pump 65WQ25-17-2.2 Specifications
This product features a maximum immersion depth of 25 meters. This series of Leo pumps sewage made for sewage treatment can handle liquid temperatures up to 40 degrees Celsius and operate efficiently at a frequency of 50Hz. The liquid pH range in this Leo pump is between 5 and 9, with compatibility with various fluids. The winding is made of copper, which enhances conductivity and durability. An insulation class of B helps this submersible Leo pump provide reliable protection against electrical faults. The product has a high protection degree of IP68. It boasts a power output of 2.2 kW (3 HP) and can achieve a maximum head of 22 meters. The maximum flow rate is an impressive 44 m3/h, with a speed of 3000 rpm. It operates on a three-phase voltage of 380V and features a powerful mechanical seal made of Sic-Sic/Carbon-Ceramic, made for demanding conditions.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Max. head (m) | 22 |
| Max. flow rate (m3/h) | 44 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 3 HP Submersible Sewage Pump 65WQ25-17-2.2 Materials
- Mechanical seal: Sic-Sic/Carbon-Ceramic
- Winding: copper
Leo 3 HP Submersible Sewage Pump 65WQ25-17-2.2 Applications
- Irrigation systems for agriculture
- Industrial water transfer
- Municipal water supply
- Drainage in construction sites
Leo 3 HP Submersible Sewage Pump 65WQ25-17-2.2 Benefits
- High efficiency with a maximum flow rate of 44 m3/h
- Durable copper winding for long-lasting performance
- IP68 protection for reliable operation in wet conditions
- Versatile applications across various industries
Leo 3 HP Submersible Sewage Pump 65WQ25-17-2.2 Price List
| No. | Name | Price |
| 1 | Leo 3 HP Submersible Sewage Pump 65WQ25-17-2.2 Price | Contact us |
