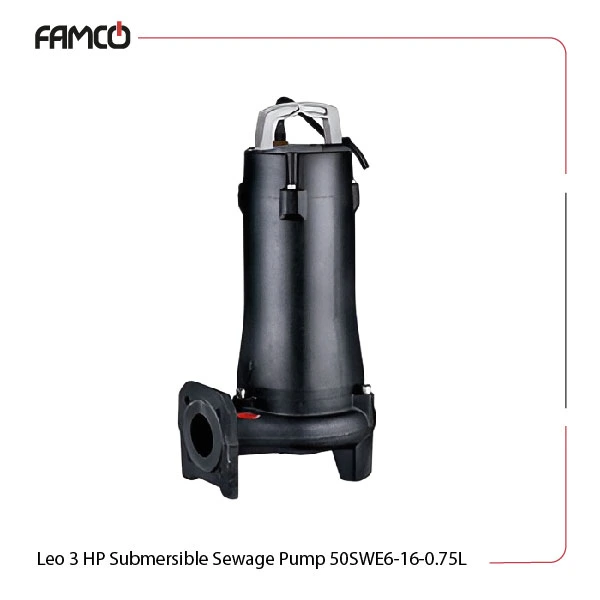

Leo 3 HP Submersible Sewage Pump 50SWE6-16-0.75L Specifications
This submersible sewage pump is designed for efficient operation in various conditions. It can handle liquid temperatures ranging from 0 to 40 degrees Celsius and a pH value between 4 and 10. With a maximum immersion depth of 5 meters, this Leo submersible pump operates at a frequency of 50Hz and features a two-pole motor. The insulation class is rated at F, so it remains durable and safe. This pump has a protection class of IPX8 for continuous immersion in water. This particular Leo submersible pump has a power output of 1 HP (0.75 kW) and a flow rate of 22 m3/h, with a maximum head of 19 meters. The pump can handle solids up to 20 mm in diameter, thanks to its HT200 motor body and impeller. These sewage pumps are well-proteced with their upper mechanical seal made of Sic/Carbon, and the lower seal made of Sic.
| Specification | Value |
| Liquid temperature | 0-40℃ |
| Liquid PH value | 4 – 10 |
| Max. Immersion depth | 5 m |
| Frequency | 50Hz |
| Pole number | 2 |
| Insulation class | F |
| Protection Class | IPX8 |
| Power (HP) | 1 |
| Power (kW) | 0.75 |
| Flow rate (m3/h) | 22 |
| Max. head (m) | 19 |
| Max. solids diameter (mm) | 20 |
Leo 3 HP Submersible Sewage Pump 50SWE6-16-0.75L Materials
- Motor body: HT200
- Impeller: HT200
- Upper mechanical seal: Sic/Carbon
- Lower mechanical seal: Sic

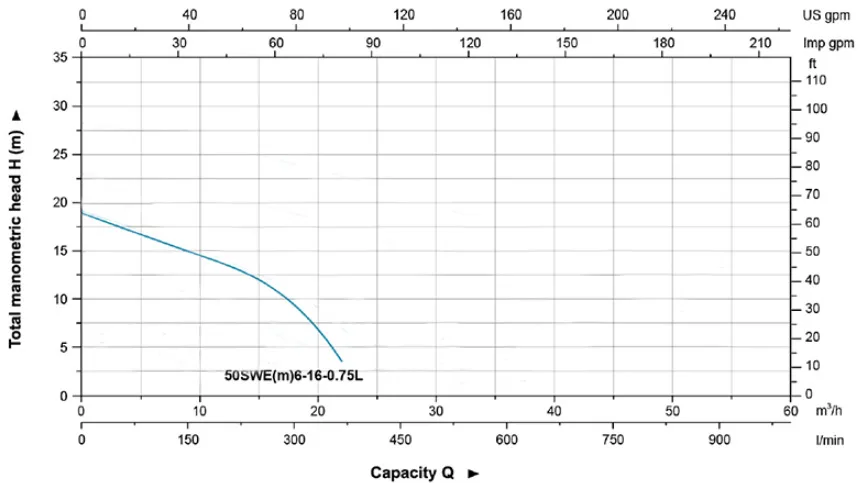

Leo 3 HP Submersible Sewage Pump 50SWE6-16-0.75L Performance Curve
Leo 3 HP Submersible Sewage Pump 50SWE6-16-0.75L Applications
- Draining flooded basements and areas
- Emptying septic tanks and sewage systems
- Managing wastewater in construction sites
- Irrigation and drainage in agricultural settings
Leo 3 HP Submersible Sewage Pump 50SWE6-16-0.75L Benefits
- High flow rate for efficient water management
- Durable construction for long-lasting use
- Handles solids up to 20 mm in diameter
- IPX8 protection class for reliable performance in water
Leo 3 HP Submersible Sewage Pump 50SWE6-16-0.75L Price List
| No. | Name | Price |
| 1 | Leo 3 HP Submersible Sewage Pump 50SWE6-16-0.75L Price | Contact us |
