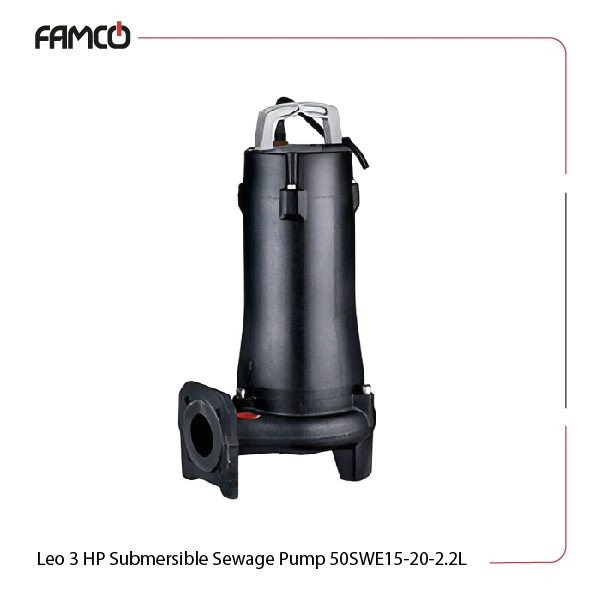

Leo 3 HP Submersible Sewage Pump 50SWE15-20-2.2L Specifications
This powerful pump operates efficiently within a liquid temperature range of 0 to 40 degrees Celsius. Suitable for liquids with a pH value between 4 and 10, it is F insulated. Since Leo pumps are known for sturdiness in tough conditions, this model has a maximum immersion depth of 5 meters. This Leo sewage pump runs on a frequency of 50Hz and features a two-pole design. The protection class IPX8 guarantees that the pump is waterproof even when fully submerged. With a power output of 3 HP (2.2 kW), this submersible pump delivers an impressive flow rate of 45 m3/h and can achieve a maximum head of 23 meters. It can handle solids up to 25 mm in diameter, which makes it versatile for different tasks. The motor body and impeller are made from durable HT200 material, while the upper and lower mechanical seals are constructed from Sic/Carbon for enhanced longevity.
| Specification | Value |
| Liquid temperature | 0-40℃ |
| Liquid PH value | 4 – 10 |
| Max. Immersion depth | 5 m |
| Frequency | 50Hz |
| Pole number | 2 |
| Insulation class | F |
| Protection Class | IPX8 |
| Power (HP) | 3 |
| Power (kW) | 2.2 |
| Flow rate (m3/h) | 45 |
| Max. head (m) | 23 |
| Max. solids diameter (mm) | 25 |
Leo 3 HP Submersible Sewage Pump 50SWE15-20-2.2L Materials
- Motor body: HT200
- Impeller: HT200
- Upper mechanical seal: Sic/Carbon
- Lower mechanical seal: Sic

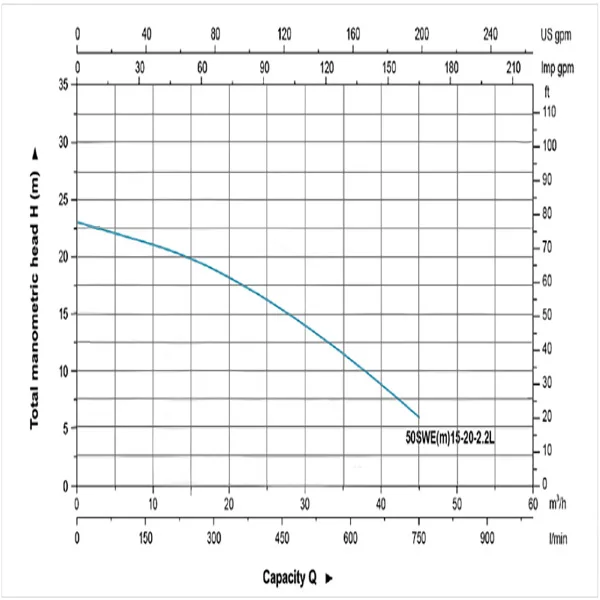

Leo 3 HP Submersible Sewage Pump 50SWE15-20-2.2L Performance Curve
Leo 3 HP Submersible Sewage Pump 50SWE15-20-2.2L Applications
- Irrigation systems in agriculture
- Drainage in construction sites
- Water transfer in industrial settings
- Wastewater management
Leo 3 HP Submersible Sewage Pump 50SWE15-20-2.2L Benefits
- High efficiency with a flow rate of 45 m3/h
- Durable materials ensure long-lasting performance
- Waterproof design allows for safe submersion
- Versatile for various liquid types and conditions
Leo 3 HP Submersible Sewage Pump 50SWE15-20-2.2L Price List
| No. | Name | Price |
| 1 | Leo 3 HP Submersible Sewage Pump 50SWE15-20-2.2L Price | Contact us |
