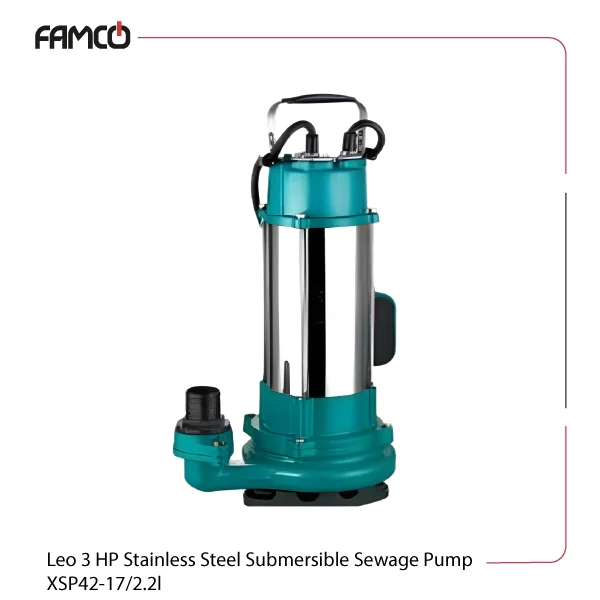

Leo 3 HP Stainless Steel Submersible Sewage Pump XSP42-17/2.2l

2.2 kW (3 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Leo Sewage Pumps, Leo Submersible Pump

Overview of Leo 3 HP Stainless Steel Submersible Sewage Pump XSP42-17/2.2l

This single-phase submersible pump has a 2.2 kW motor, sufficient power for pumping water or other liquids up to 40°C. Its IP68 protection class ensures it can operate underwater at depths up to 5 meters without damage. The pump is built with durable cast iron components, including the impeller and pump body. It features a mechanical seal made of carbon and ceramic, which provides excellent sealing and longevity. The copper winding enhances electrical efficiency, while the ability to handle particles up to 20 mm makes it versatile for different applications. The pump’s maximum flow rate of 700 liters per minute and head of 42 meters make it ideal for various industrial, agricultural, or residential uses.

Leo 3 HP Stainless Steel Submersible Sewage Pump XSP42-17/2.2l Specifications

This pump features a powerful 2.2 kW motor, equivalent to 3 HP, operating at 220V and 50Hz. This series of Leo sewage pumps boasts a maximum flow rate of 700 liters per minute, which translates to 22 cubic meters per hour, and can generate a maximum head of 42 meters. It has an insulation class B and a sturdy IP68 protection rating, succeeding in 5-meter deep submersion. The device can handle liquids with a pH between 4 and 10 and a maximum temperature of 40°C. It The pump’s impeller is made of HT200 material, ensuring durability, while the pump body is cast iron HT200 for strength. The mechanical seal is composed of carbon and ceramic, providing reliable sealing. The winding is made of copper, ensuring efficient electrical conductivity. It can handle particles up to 20 mm in diameter, making it suitable for various liquid transfer applications. The gross weight of the pump is approximately 29.7 kg, indicating portability and enhanced handling.

Specification	Value
Power (Kw)	2.2
Power (HP)	3
Voltage (V)	220
Frequency (Hz)	50
Insulation class	B
Protection class	IP68
Max. immersion depth (m)	5
Max. liquid temperature (°C)	40
Liquid Ph value	4-10
Max. flow rate (l/min)	700
Max. flow rate (m3/h)	22
Max. head (m)	42
Max. particle diameter (mm)	20
Gross weight (kg)	29.7

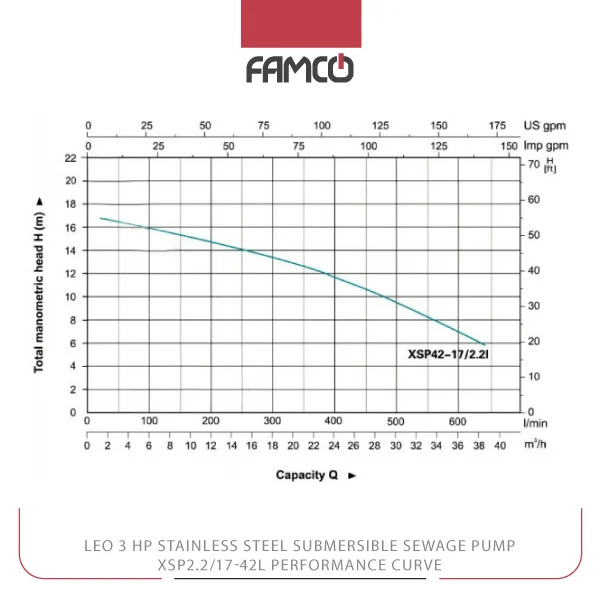

Leo 3 HP Stainless Steel Submersible Sewage Pump XSP42-17/2.2l Performance Curve

Leo 3 HP Stainless Steel Submersible Sewage Pump XSP42-17/2.2l Materials

Mechanical seal: carbon/ceramic
Impeller: HT200
Pump body: cast iron HT200
Winding: copper

Leo 3 HP Stainless Steel Submersible Sewage Pump XSP42-17/2.2l Applications

Water transfer in industrial settings
Irrigation systems for agriculture
Drainage and flood control
Water supply for residential or commercial buildings

Leo 3 HP Stainless Steel Submersible Sewage Pump XSP42-17/2.2l Benefits

High flow rate of 700 liters per minute for efficient liquid transfer
Durable cast iron construction for long-lasting use
Suitable for submersion up to 5 meters with IP68 protection
Handles particles up to 20 mm, making it versatile for various liquids

Leo 3 HP Stainless Steel Submersible Sewage Pump XSP42-17/2.2l Price List

No.	Name	Price
1	Leo 3 HP Stainless Steel Submersible Sewage Pump XSP42-17/2.2l Price	Contact us

Brand	Leo
Power (kW)	2.2
Power (HP)	3
Voltage (V)	220
Frequency (Hz)	50
Insulation Class	B
Degree of Protection	IP68
Maximum immersion depth (m)	5
Maximum Liquid Temperature (°C)	40
Maximum Flow Rate (L/min)	700
Maximum Delivery Head (m)	42
Weight (kg)	29.7
