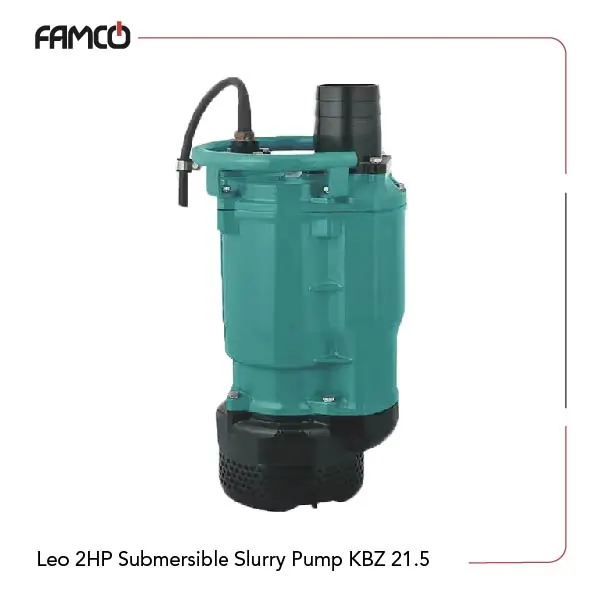

Leo 2HP Submersible Slurry Pump KBZ 21.5 Specifications
This pump is designed to handle a maximum liquid temperature of +40℃, making it suitable for various applications. It has a maximum flow rate of 27 m³/h or 0.45 m³/min to provide efficient water movement. The maximum head of 22 meters enables this pump to effectively lift water to significant heights (22 meters). It can be immersed up to 25 meters deep, which makes this pump versatile for different environments. The winding is made of copper to enhance durability and efficiency for longer periods of operation. The insulation class is B, which indicates good thermal stability. This Leo submersible pump comes in with an IP68 protection class, which is highly resistant to dust and water ingress. The construction includes cast iron for the hose coupling, upper cover, motor cover, and pump body, providing strength and longevity. The mechanical seal is designed for high performance, and the impeller is made from high chrome alloy for enhanced durability. The handle and strainer are also made of steel, ensuring reliability.
| Specification | Value |
| Max. liquid temperature | +40℃ |
| Max Flow Rate (m³/h) | 27 |
| Max Flow Rate (l/min) | 450 |
| Max head (m) | 22 |
| Power (kW) | 2 |
| Power (HP) | 1.5 |
| Max. Immersion depth | 25 m |
| Insulation class | B |
| Protection degree | IP68 |
Leo 2HP Submersible Slurry Pump KBZ 21.5 Materials
- Winding: Copper
- Hose coupling: Cast Iron
- Upper Cover: Cast Iron
- Motor Cover: Cast Iron
- Mechanical Seal: Sic-Sic/Carbon-Sic(≤ 2.2KW) Sic-Sic/Sic-Sic( ≥ 3.7KW)
- Strainer: Steel
- Impeller: High Chrome alloy
- Handle: Steel
- Pump Body: Cast Iron

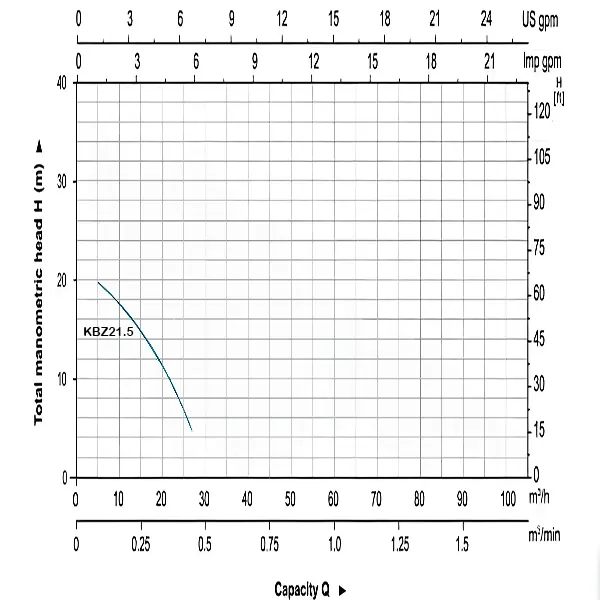

Leo 2HP Submersible Slurry Pump KBZ 21.5 Performance Curve
Leo 2HP Submersible Slurry Pump KBZ 21.5 Applications
- Irrigation systems for agriculture
- Drainage in construction sites
- Water supply for industrial processes
- Flood control and management
Leo 2HP Submersible Slurry Pump KBZ 21.5 Benefits
- High flow rate for efficient water movement
- Durable construction for long-lasting use
- Versatile for various applications
- Excellent protection against water and dust ingress
Leo 2HP Submersible Slurry Pump KBZ 21.5 Price List
| No. | Name | Price |
| 1 | Leo 2HP Submersible Slurry Pump KBZ 21.5 Price | Contact us |
There are no reviews yet.
