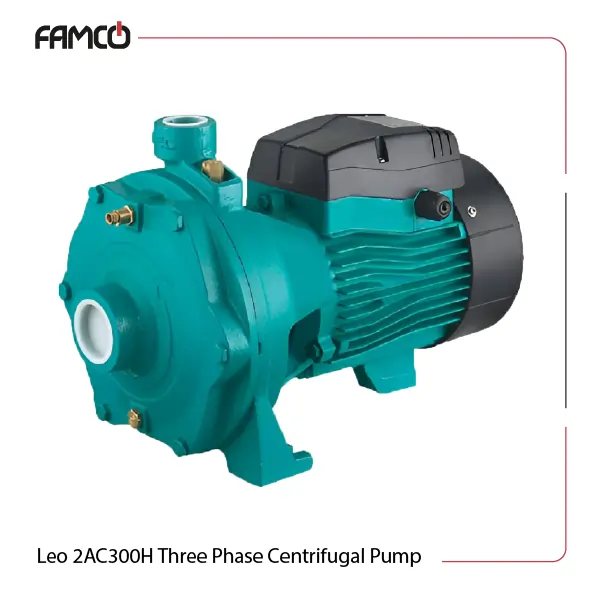

Overview of the Leo 2AC300H Three-phase Centrifugal Pump
The Leo 2AC300H three phase centrifugal pump is a powerhouse in its category, designed to efficiently handle the transfer of clean water and other liquids with similar properties. This pump is perfect for applications such as urban water supply, industrial processes, and pressure boosting in tall buildings. It’s also ideal for firefighting, garden irrigation, long-distance water transfers, HVAC systems, and circulation of hot and cold water.
How Does Leo 2AC300H Three Phase Centrifugal Pump Work?
The operation of the Leo pump is based on centrifugal force. When the motor runs, it drives the impeller to rotate at high speed, causing the fluid to be drawn into the impeller’s center and then flung outward by the centrifugal force. This process converts mechanical energy into kinetic energy, which is then transformed into pressure energy, resulting in a consistent and powerful water flow.
Exclusive Features and Benefits of the Leo 2AC300H Three Phase Centrifugal Pump
The Leo 2AC300H three phase Centrifugal Pump is distinguished by its robust construction and advanced features. The pump body and support are made from cast iron with a special anti-rust treatment, ensuring longevity and resistance to corrosion. The shaft is made from AISI 304 stainless steel, known for its durability and resistance to wear.
This pump can handle liquids up to a temperature of +40℃ and has a maximum suction capacity of +8m. Its motor is equipped with C&U bearings and features copper winding, enhancing efficiency and reliability. The built-in thermal protector for single-phase motors ensures safe operation. Additionally, the pump boasts an insulation class F and protection class IPX4, making it suitable for a wide range of environments with ambient temperatures up to +40℃.
Leo 2AC300H Three Phase Centrifugal Pump Installation and Usage
The pump comes with comprehensive installation instructions, making it easy to set up and start operating. Once installed, the water pump requires minimal maintenance, thanks to its high-quality construction and durable components.
Leo 2AC300H Three Phase Centrifugal Pump Components
- Drain Plug: HPb59-1
- Pump Body and Support: HT 200 for durability and strength
- Gasket: NBR for a secure seal
- Impeller: AISI 304/Brass HT200 for efficient fluid movement
- Bracket Cover: AISI 304 for added protection and support
- Mechanical Seal: Carbon/Ceramic for reliable sealing
- Bearings and Stator: Ensuring smooth and efficient operation
- Capacitor and Terminal Box: Ensuring reliable electrical performance
Important Tips for Buying Leo 2AC300H Three Phase Centrifugal Pump
When purchasing the Leo 2AC300H three-phase centrifugal pump, it’s crucial to consider your specific needs and ensure the specifications of Leo 2AC220 three-phase centrifugal pump align with them. Evaluate the maximum liquid temperature and suction capacity to confirm suitability for your application. Additionally, assess the installation environment to ensure it matches the pump’s operational requirements, including ambient temperature and protection class. You can find the best Leo 2AC centrifugal pump price at Famococorp.
Leo 2AC300H Three Phase Centrifugal Pump Price List
| No. | Name | Price |
| 1 | Leo 2AC300H three phase centrifugal pump price | Contact us |
