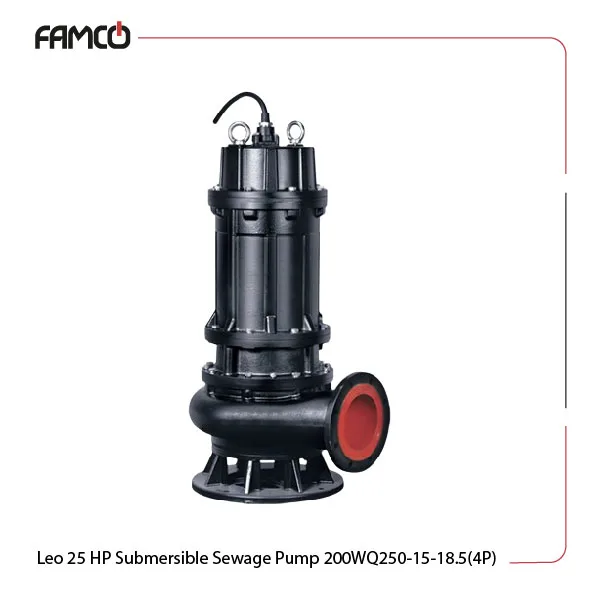

Leo 25 HP Submersible Sewage Pump 200WQ250-15-18.5(4P)

Leo 25 HP Submersible Sewage Pump 200WQ250-15-18.5(4P) Specifications

This powerful pump is designed for deep immersion applications, with a maximum depth of 25 meters. This submersible pump operates efficiently at a liquid temperature of up to +40°C and supports a pH range of 5 to 9. The copper winding ensures durability and excellent conductivity. An insulation class of B helps it provide reliable performance in various conditions. The Leo sewage pump is rated at 18.5 kW (25 HP) and can achieve a maximum head of 25 meters for high-demand tasks. It offers users a maximum flow rate of 400 m³/h and operates at a speed of 1500 rpm. The three-phase voltage requirement is 380V, and it features a tight mechanical seal made of Sic-Sic/Sic-Sic, so it requires minimal maintenance. With an IP68 protection degree, this series of Leo pumps is built to withstand harsh environments.

Leo 25 HP Submersible Sewage Pump 200WQ250-15-18.5(4P) Materials

• Winding: copper
• Mechanical seal: Sic-Sic/Sic-Sic

Leo 25 HP Submersible Sewage Pump 200WQ250-15-18.5(4P) Applications

• Irrigation systems in agriculture
• Water supply for industrial processes
• Drainage in construction sites
• Cooling systems in power plants

Leo 25 HP Submersible Sewage Pump 200WQ250-15-18.5(4P) Benefits

• High efficiency with a maximum flow rate of 400 m³/h
• Durable copper winding for long-lasting performance
• IP68 rating ensures protection against water and dust
• Versatile use in various industrial and agricultural applications
