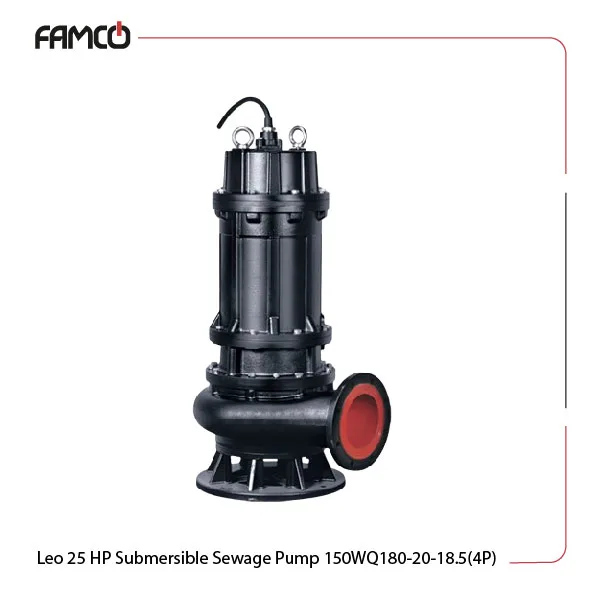

Leo 25 HP Submersible Sewage Pump 150WQ180-20-18.5(4P) Specifications
This product is designed for high-performance applications, featuring a maximum immersion depth of 25 meters and a liquid temperature tolerance of up to +40 degrees Celsius. This Leo pump operates at a frequency of 50Hz and is suitable for liquids with a pH value ranging from 5 to 9. The winding of this series of Leo submersible pumps is made of durable copper for enhanced energy transfer. With an insulation class of B and a protection degree of IP68, these sewage pumping solutions are built to withstand harsh conditions. It has a power output of 18.5 kW (25 HP) and can achieve a maximum head of 20 meters. The impressive flow rate reaches up to 300 m3/h, with a speed of 1500 rpm. The three-phase voltage requirement is 380V, and it features a reliable Sic-Sic mechanical seal for enhanced durability.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 18.5 |
| Power (HP) | 25 |
| Max. head (m) | 20 |
| Max. flow rate (m3/h) | 300 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 25 HP Submersible Sewage Pump 150WQ180-20-18.5(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 25 HP Submersible Sewage Pump 150WQ180-20-18.5(4P) Applications
- Industrial liquid transfer
- Irrigation systems
- Water treatment facilities
- Cooling systems
Leo 25 HP Submersible Sewage Pump 150WQ180-20-18.5(4P) Benefits
- High efficiency with a maximum flow rate of 300 m3/h
- Durable construction with copper winding
- Reliable operation in harsh conditions
- Excellent protection against water and dust with IP68 rating
Leo 25 HP Submersible Sewage Pump 150WQ180-20-18.5(4P) Price List
| No. | Name | Price |
| 1 | Leo 25 HP Submersible Sewage Pump 150WQ180-20-18.5(4P) Price | Contact us |
