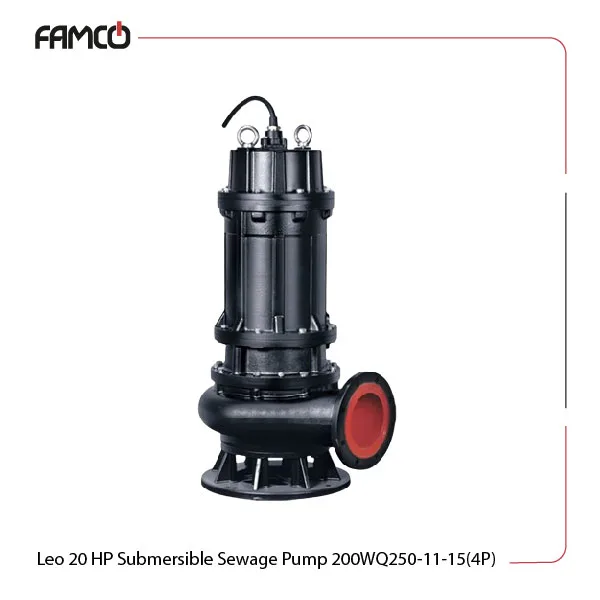

Leo 20 HP Submersible Sewage Pump 200WQ250-11-15(4P) Specifications
This powerful pump is designed for deep immersion applications, with a maximum depth of 25 meters. This Leo-produced submersible pump operates efficiently at a liquid temperature of up to 40 degrees Celsius and can handle a pH range of 5 to 9. This line of Leo pumps features a powerful copper winding and is classified under insulation class B. A protection degree of IP68 incorporated in its build is well-suited for wet environments. The pump delivers a maximum head of 22 meters and a flow rate of 380 cubic meters per hour, which is a must in industrial Leo sewage pumping tool uses. It runs at a speed of 1500 rpm and requires a three-phase voltage of 380V. As for the mechanical sealing, this product has it made using Sic-Sic, providing reliable performance and longevity.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Max. head (m) | 22 |
| Max. flow rate (m3/h) | 380 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 20 HP Submersible Sewage Pump 200WQ250-11-15(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 20 HP Submersible Sewage Pump 200WQ250-11-15(4P) Applications
- Water supply systems in industrial facilities
- Irrigation systems for agriculture
- Drainage and sewage management
- Cooling systems in manufacturing processes
Leo 20 HP Submersible Sewage Pump 200WQ250-11-15(4P) Benefits
- High efficiency with a maximum flow rate of 380 m3/h
- Durable construction with copper winding and Sic-Sic mechanical seal
- Operates effectively in harsh environments with IP68 protection
- Versatile applications across various industries
Leo 20 HP Submersible Sewage Pump 200WQ250-11-15(4P) Price List
| No. | Name | Price |
| 1 | Leo 20 HP Submersible Sewage Pump 200WQ250-11-15(4P) Price | Contact us |
