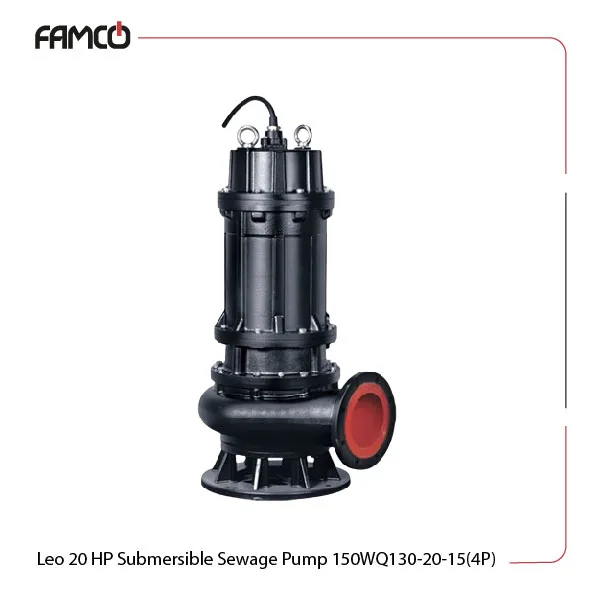

Leo 20 HP Submersible Sewage Pump 150WQ130-20-15(4P)

Leo 20 HP Submersible Sewage Pump 150WQ130-20-15(4P) Specifications

This powerful pump is designed for deep immersion applications, with a maximum immersion depth of 25 meters. Its impressive specifications help it handle various liquids while maintaining optimal performance. This Leo submersible pump operates efficiently at a liquid temperature of up to +40°C and supports a liquid pH range of 5 to 9. The pump features a sturdy copper winding and is classified under insulation class B. With a protection degree of IP68, this line of Leo pumps is well-suited for harsh environments. The pump delivers a maximum head of 23 meters and a flow rate of 300 m³/h. To make this sewage pump as compatible as possible with present setups, it operates at a frequency of 50Hz and a speed of 1500 rpm, powered by a three-phase voltage of 380V. The mechanical seal is made of Sic-Sic/Sic-Sic, providing excellent sealing performance.

Specification	Value
Max. immersion depth (m)	25
Liquid temperature (℃)	+40
Frequency	50Hz
Liquid PH value	5-9
Insulation class	B
Protection degree	IP68
Power (kW)	15
Power (HP)	20
Max. head (m)	23
Max. flow rate (m3/h)	300
Speed (rpm)	1500
Three-phase voltage (V)	380

Leo 20 HP Submersible Sewage Pump 150WQ130-20-15(4P) Materials

• Winding: copper
• Mechanical seal: Sic-Sic/Sic-Sic

Leo 20 HP Submersible Sewage Pump 150WQ130-20-15(4P) Applications

• Water transfer in industrial processes
• Drainage in construction sites
• Irrigation systems for agriculture
• Wastewater management



Leo 20 HP Submersible Sewage Pump 150WQ130-20-15(4P) Benefits

• High efficiency with a maximum flow rate of 300 m³/h
• Durable construction with copper winding and IP68 protection
• Versatile use in various applications
• Reliable performance with a mechanical seal for leak prevention



Leo 20 HP Submersible Sewage Pump 150WQ130-20-15(4P) Price List

No.	Name	Price
1	Leo 20 HP Submersible Sewage Pump 150WQ130-20-15(4P) Price	Contact us
