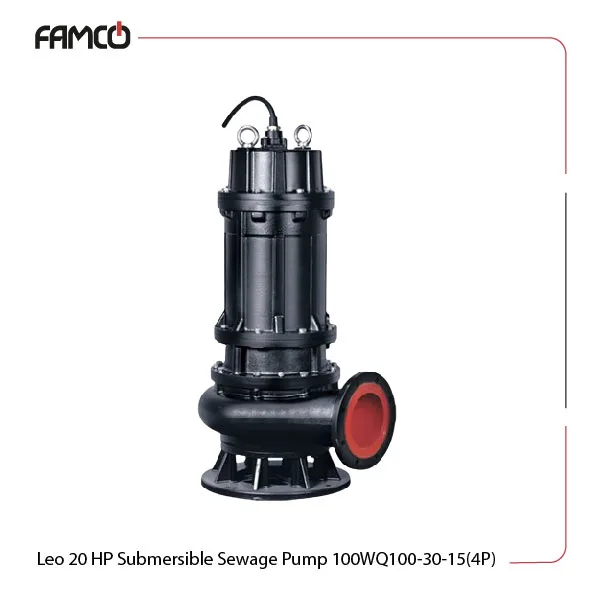

Leo 20 HP Submersible Sewage Pump 100WQ100-30-15(4P) Specifications
This powerful pump is designed for deep immersion, reaching up to 25 meters to get the scale. This Leo submersible pump operates efficiently at a maximum liquid temperature of +40°C and supports a pH range of 5 to 9. The copper winding enhances the product’s conductivity for better performance. An insulation class of B enables this sewage pump to provide excellent protection against electrical hazards. The pump is rated at 15 kW (20 HP) and can achieve a maximum head of 32 meters. It has a remarkable flow rate of 190 m³/h. Operating at a frequency of 50Hz and a speed of 1500 rpm, this submersible pump requires a three-phase voltage of 380V. The mechanical seal is made of Sic-Sic, which means it requires minimal maintenance.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 15 |
| Power (HP) | 20 |
| Max. head (m) | 32 |
| Max. flow rate (m3/h) | 190 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 20 HP Submersible Sewage Pump 100WQ100-30-15(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 20 HP Submersible Sewage Pump 100WQ100-30-15(4P) Applications
- Deep well pumping
- Industrial water supply
- Irrigation systems
- Wastewater management
Leo 20 HP Submersible Sewage Pump 100WQ100-30-15(4P) Benefits
- High efficiency with a flow rate of 190 m³/h
- Durable copper winding for long-lasting use
- IP68 rating for protection against water and dust
- Versatile applications in various environments
Leo 20 HP Submersible Sewage Pump 100WQ100-30-15(4P) Price List
| No. | Name | Price |
| 1 | Leo 20 HP Submersible Sewage Pump 100WQ100-30-15(4P) Price | Contact us |
