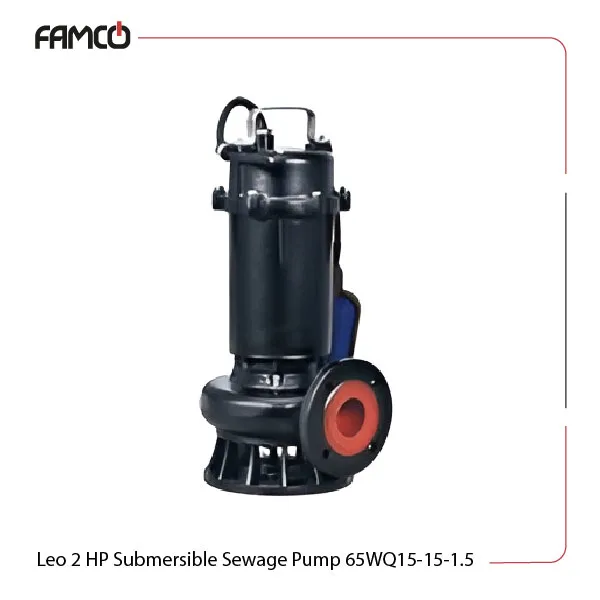

Leo 2 HP Submersible Sewage Pump 65WQ15-15-1.5 Specifications
This product is suitable for deep water operations with a maximum immersion depth of 25 meters. The liquid temperature can reach up to +40 degrees Celsius. Operating at a frequency of 50Hz, this series of Leo submersible pumps supports a liquid pH range of 5 to 9, which is ideal for many industrial and agricultural uses. The winding is made of copper, which provides excellent conductivity and durability. An insulation class of B allows this Leo pump to operate safely and reliably. The protection degree of IP68 guarantees that the unit is dust-tight and can withstand submersion in water. The power output is 1.5 kW or 2 HP, with a maximum head of 20 meters and a flow rate of 35 m3/h, making it efficient for various pumping tasks. These sewage pumps are famous for their compatiblity features while operating at a speed of 3000 rpm and complying with both three-phase (380V) and single-phase (220V) voltage systems. The mechanical seal consists of Sic-Sic/Carbon-Ceramic with lasting performance and minimal maintenance.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Max. head (m) | 20 |
| Max. flow rate (m3/h) | 35 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
| Single-phase voltage (V) | 220 |
Leo 2 HP Submersible Sewage Pump 65WQ15-15-1.5 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 2 HP Submersible Sewage Pump 65WQ15-15-1.5 Applications
- Irrigation systems for agriculture
- Drainage in construction sites
- Water supply for industrial processes
- Aquaculture and fish farming
Leo 2 HP Submersible Sewage Pump 65WQ15-15-1.5 Benefits
- High efficiency with a maximum flow rate of 35 m3/h
- Durable copper winding for long-lasting performance
- IP68 protection ensures reliability in wet environments
- Versatile voltage compatibility for easy installation
Leo 2 HP Submersible Sewage Pump 65WQ15-15-1.5 Price List
| No. | Name | Price |
| 1 | Leo 2 HP Submersible Sewage Pump 65WQ15-15-1.5 Price | Contact us |
There are no reviews yet.
