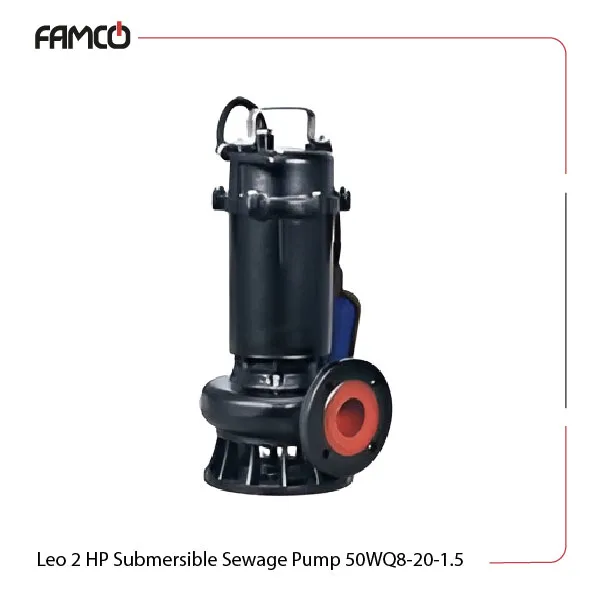

Leo 2 HP Submersible Sewage Pump 50WQ8-20-1.5 Specifications

This product is designed for efficient performance in various applications. This series of Leo sewage pumps has significant immersion depths, and this one is set at 25 meters, making it suitable for deep water operations. The liquid temperature can reach up to +40 degrees Celsius, and this Leo pump operates effectively within a pH range of 5 to 9. The motor features copper windings and is insulated with class B materials, ensuring durability and reliability. With a protection degree of IP68, it is well-suited for wet environments. The power output is 1.5 kW (2 HP), with a maximum head of 22 meters and a flow rate of 25 m3/h. Operating at a speed of 3000 rpm, these submersible pump can handle both three-phase (380V) and single-phase (220V) voltages. The mechanical seal is made of Sic-Sic/Carbon-Ceramic, providing excellent sealing capabilities.

Specification	Value
Max. immersion depth (m)	25
Liquid temperature (℃)	+40
Frequency	50Hz
Liquid PH value	5-9
Insulation class	B
Protection degree	IP68
Power (kW)	1.5
Power (HP)	2
Max. head (m)	22
Max. flow rate (m3/h)	25
Speed (rpm)	3000
Three-phase voltage (V)	380
Single-phase voltage (V)	220

Leo 2 HP Submersible Sewage Pump 50WQ8-20-1.5 Materials

• Winding: copper
• Mechanical seal: Sic-Sic/Carbon-Ceramic

Leo 2 HP Submersible Sewage Pump 50WQ8-20-1.5 Applications

• Irrigation systems for agriculture
• Water drainage in construction sites
• Aquaculture and fish farming
• Industrial water transfer and circulation



Leo 2 HP Submersible Sewage Pump 50WQ8-20-1.5 Benefits

• High efficiency with a maximum flow rate of 25 m3/h
• Durable construction with copper windings
• Excellent sealing with Sic-Sic/Carbon-Ceramic mechanical seal
• Versatile use in various environments due to IP68 protection



Leo 2 HP Submersible Sewage Pump 50WQ8-20-1.5 Price List

No.	Name	Price
1	Leo 2 HP Submersible Sewage Pump 50WQ8-20-1.5 Price	Contact us
