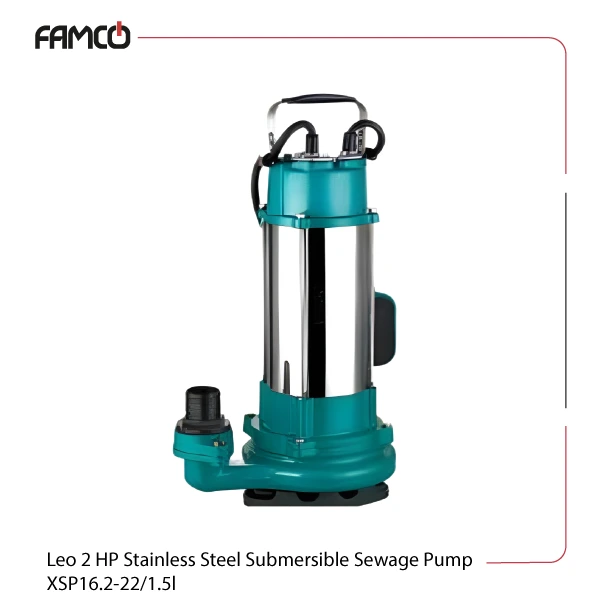

Leo 2 HP Stainless Steel Submersible Sewage Pump XSP16.2-22/1.5l

1.5 kW (2 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Leo Pumps, Leo Sewage Pumps, Leo Submersible Pump

Overview of Leo 2 HP Stainless Steel Submersible Sewage Pump XSP16.2-22/1.5l

This single-phase submersible pump is equipped with a 1.5 kW motor that provides reliable power with deep immersion levels of up to 5 meters. The XSP16.2-22/1.5l has a durable cast iron body and HT200 impeller to ensure longevity and resistance to wear. Considering it has a maximum flow rate of 270 liters per minute and a head of 22 meters, this pump can quickly handle significant volumes of liquid. Its protection class IP68 allows it to operate underwater without worry, and the mechanical seal made of carbon and ceramic adds extra security against leaks. Suitable for liquids with a pH of 4 to 10 and temperatures up to 40°C, this pump is versatile for various industrial, agricultural, and water management tasks. Its copper winding enhances electrical efficiency, while the ability to handle particles up to 10mm makes it adaptable for different liquid types.

Leo 2 HP Stainless Steel Submersible Sewage Pump XSP16.2-22/1.5l Specifications

This robust pump operates with a power of 1.5 kW (2 HP) and runs on a 220V power supply at 50Hz. It features an insulation class B and an IP68 protection rating, making it suitable for underwater use up to 5 meters deep. The pump can handle liquids with a pH between 4 and 10 and a maximum temperature of 40°C. The Leo sewage pumps have considerable maximum flow rates, and this one has a 270 liters per minute, equivalent to 22 cubic meters per hour. The generated head reaches up to 22 meters. The pump’s impeller is made of HT200 material, and the pump body is cast iron HT200. It includes a carbon/ceramic mechanical seal and a copper winding for efficient operation. The maximum particle size it can handle is 10mm, making it suitable for various liquid transfer applications. The gross weight of the pump is 27.6 kg, indicating a sturdy build designed for heavy-duty tasks.

Specification	Value
Power (kW)	1.5
Power (HP)	2
Voltage (V)	220
Frequency (Hz)	50
Insulation class	B
Protection class	IP68
Max. immersion depth (m)	5
Max. liquid temperature (°C)	40
Liquid Ph value	4-10
Max. flow rate (l/min)	270
Max. flow rate (m3/h)	22
Max. head (m)	22
Max. particle diameter (mm)	10
Gross weight (kg)	27.6

Leo 2 HP Stainless Steel Submersible Sewage Pump XSP16.2-22/1.5l Materials

Mechanical seal: carbon/ceramic
Impeller: HT200
Pump body: cast iron HT200
Winding: copper

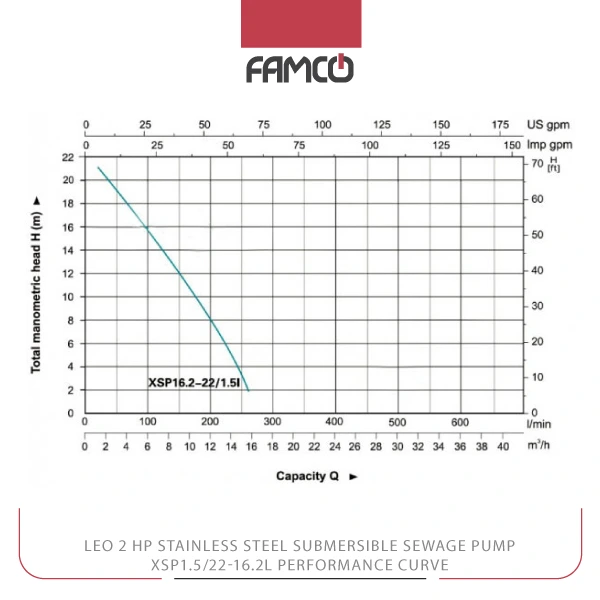

Leo 2 HP Stainless Steel Submersible Sewage Pump XSP16.2-22/1.5l Performance Curve

Leo 2 HP Stainless Steel Submersible Sewage Pump XSP16.2-22/1.5l Applications

Water transfer in industrial settings
Irrigation systems for agriculture
Drainage and flood control
Aquarium and pond maintenance

Leo 2 HP Stainless Steel Submersible Sewage Pump XSP16.2-22/1.5l Benefits

High flow rate for quick liquid transfer
Durable cast iron construction ensures long life
Suitable for underwater use up to 5 meters
Handles liquids with particles up to 10mm

Leo 2 HP Stainless Steel Submersible Sewage Pump XSP16.2-22/1.5l Price List

No.	Name	Price
1	Leo 2 HP Stainless Steel Submersible Sewage Pump XSP16.2-22/1.5l Price	Contact us

Brand	Leo
Power (kW)	1.5
Power (HP)	2
Voltage (V)	220
Frequency (Hz)	50
Insulation Class	B
Degree of Protection	IP68
Maximum immersion depth (m)	5
Maximum Liquid Temperature (°C)	40
Maximum Flow Rate (m3/h)	22
Maximum Delivery Head (m)	22
Weight (kg)	27.6
