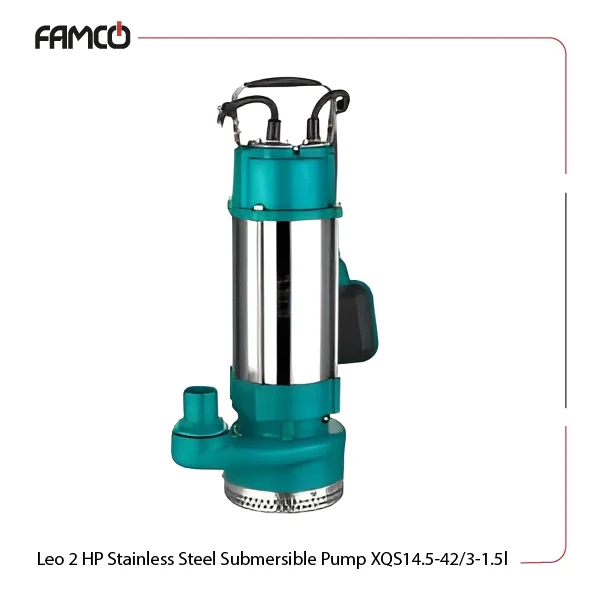

Leo 2 HP Stainless Steel Submersible Pump XQS14.5-42/3-1.5l

1.5 kW (2 HP)

single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Leo Pumps, Leo Submersible Pump

Overview of Leo 2 HP Stainless Steel Submersible Pump XQS14.5-42/3-1.5l

As a 2 HP submersible pump, this Leo product offers users a 250 l/min flow rate at its best. Its ability to manage liquid temperatures up to +40℃ and a pH range of 6.5 to 8 adds to its versatility. It is essential to note its compatibility with most present setups since it operates in a 220 voltage and 50 Hz frequency. This high-performance pump performs well under various applications, especially in environments requiring reliable water movement. The product’s sturdy construction and advanced materials handle challenging conditions. The IP68 rating ensures it can be submerged without issues, which is ideal for deep well applications or drainage tasks.This pump is perfect for both residential and industrial uses by offering efficient and effective water management solutions.

Leo 2 HP Stainless Steel Submersible Pump XQS14.5-42/3-1.5l Specifications

This pump features a solid copper winding and an insulation class of B with maximized durability and efficiency. The XQS14.5-42/3-1.5l has a high protection class of IP68. All in all, this Leo stainless steel submersible pump suitable for submerged applications. The shaft is made from welded stainless steel, while the pump body is constructed from durable cast iron (HT200) to give it strength in resisting corrosion. It can operate at a maximum immersion depth of 5 meters and handle liquid temperatures up to +40℃. The liquid pH range is between 6.5 and 8, making these Leo pumps versatile for various fluids. The handle is also stainless steel to enhance its durability.

The motor cover is HT200, and it includes a mechanical seal made of carbon and ceramic for reliable operation. The impeller used in its build is also crafted from HT200, ensuring efficient performance. It operates on a voltage of 220V at 50Hz, with a maximum flow rate of 250 liters per minute and a maximum head of 42 meters. The pump weighs 26.8 kg and has a power output of 1.5 kW (2 HP).

Specification	Value
Insulation class	B
Protection class	IP68
Max. immersion depth	5m
Max. liquid temperature	+40℃
Liquid pH value	6.5-8
Motor Cover	HT200
Voltage (V/Hz)	220/50
Max. flow (l/min)	250
Max. head (m)	42
Power (kW)	1.5
Power (HP)	2

Leo 2 HP Stainless Steel Submersible Pump XQS14.5-42/3-1.5l Materials

Shaft: welded Stainless steel
Pump body: cast iron, HT200
Handle: Stainless Steel
Mechanical Seal: Carbon/Ceramic
Impeller: HT200
Winding: Copper

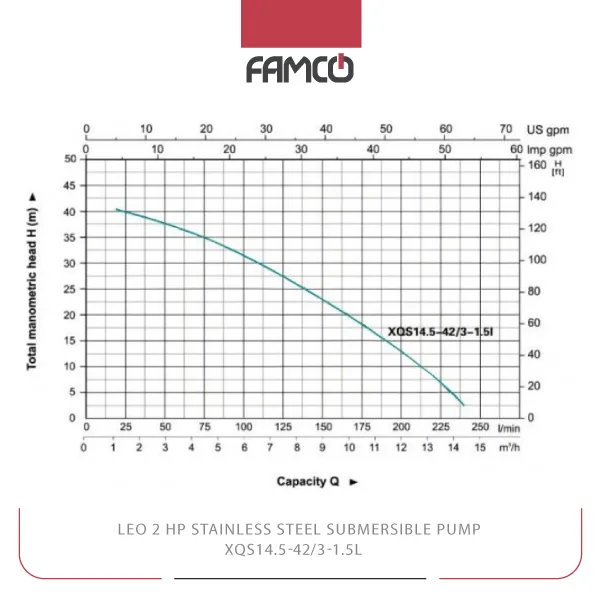

Leo 2 HP Stainless Steel Submersible Pump XQS14.5-42/3-1.5l Performance Curve

Leo 2 HP Stainless Steel Submersible Pump XQS14.5-42/3-1.5l Applications

Deep well water extraction
Drainage in construction sites
Irrigation systems for agriculture
Water transfer in industrial processes

Leo 2 HP Stainless Steel Submersible Pump XQS14.5-42/3-1.5l Benefits

Durable construction with stainless steel and cast iron
High efficiency with a maximum flow rate of 250 l/min
Submersible design for versatile applications
Reliable operation with a robust mechanical seal

Leo 2 HP Stainless Steel Submersible Pump XQS14.5-42/3-1.5l Price List

No.	Name	Price
1	Leo 2 HP Stainless Steel Submersible Pump XQS14.5-42/3-1.5l Price	Contact us

Brand	Leo
Insulation Class	B
Degree of Protection	IP68
Maximum immersion depth (m)	5
Maximum Liquid Temperature (°C)	40
Voltage (V)	220
Frequency (Hz)	50
Maximum Flow Rate (L/min)	250
Maximum Delivery Head (m)	42
Power (kW)	1.5
Power (HP)	2
Pump Body	Cast Iron
