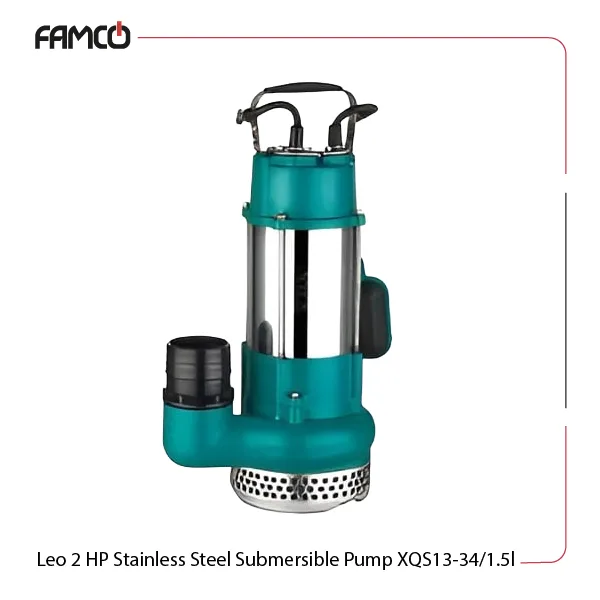

Leo 2 HP Stainless Steel Submersible Pump XQS13-34/1.5l Specifications
This pump features a durable copper winding and a welded stainless steel shaft to ensure longevity and reliability. The product’s maximum immersion depth is 5 meters, and it tolerates a maximum liquid temperature of +40℃ at various applications. The liquid pH range is between 6.5 and 8, making it versatile for different liquids. The pump body is made from cast iron HT200 to provide strength and stability. The stainless steel handle added to this pump causes convenience, while the mechanical seal made of carbon and ceramic ensures leak-free operation. This Leo stainless steel submersible pump has an insulation class of B and a powerful protection class of IP68, suitable for harsh environments. It can handle particles up to 5 mm in diameter. Operating at a voltage of 220V/50Hz, this Leo pump offers a maximum flow rate of 216 liters per minute and a maximum head of 34 meters.
| Specification | Value |
| Insulation class | B |
| Protection class | IP68 |
| Max. immersion depth | 5m |
| Max. liquid temperature | +40℃ |
| Liquid pH value | 6.5-8 |
| Max. diameter of particle | 5 mm |
| Voltage (V/Hz) | 220/50 |
| Max. flow (l/min) | 216 |
| Max. head (m) | 34 |
| Power (HP) | 2 |
| Power (kW) | 1.5 |
Leo 2 HP Stainless Steel Submersible Pump XQS13-34/1.5l Materials
- Winding: Copper
- Shaft: welded stainless steel
- Pump body: cast iron, HT200
- Handle : Stainless Steel
- Mechanical Seal: Carbon/Ceramic

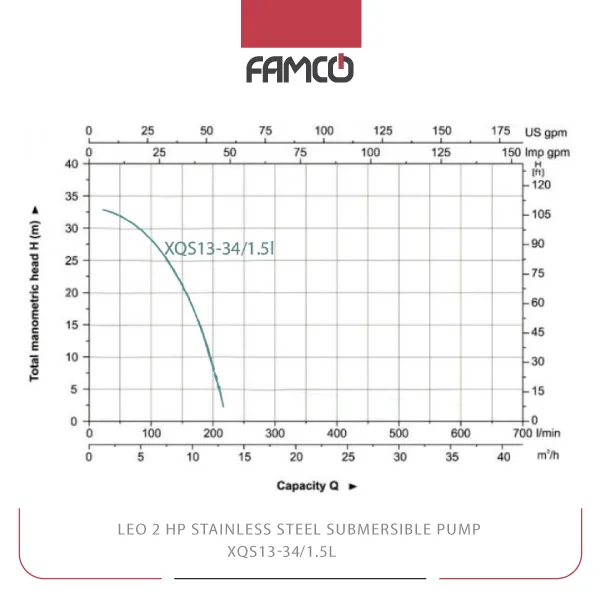

Leo 2 HP Stainless Steel Submersible Pump XQS13-34/1.5l Performance Curve
Leo 2 HP Stainless Steel Submersible Pump XQS13-34/1.5l Applications
- Drainage of flooded areas
- Irrigation in agricultural settings
- Industrial liquid transfer
- Water management in construction sites
Leo 2 HP Stainless Steel Submersible Pump XQS13-34/1.5l Benefits
- Durable construction for long-lasting use
- High flow rate for efficient operation
- Versatile for various liquid types
- Easy to install and operate
Leo 2 HP Stainless Steel Submersible Pump XQS13-34/1.5l Price List
| No. | Name | Price |
| 1 | Leo 2 HP Stainless Steel Submersible Pump XQS13-34/1.5l Price | Contact us |
