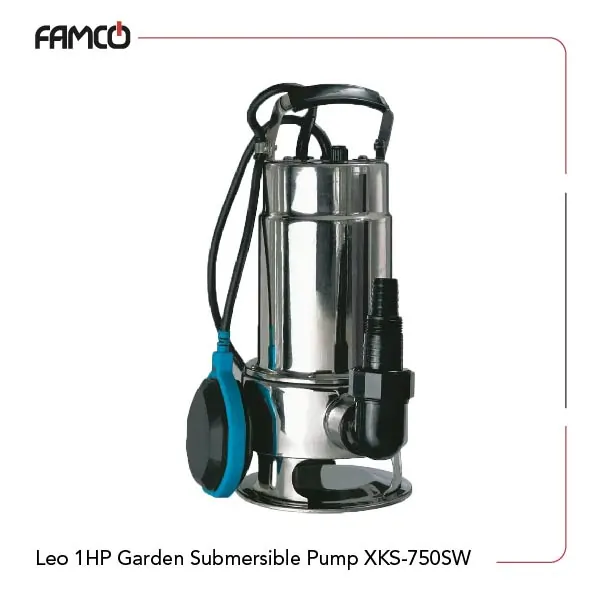

Leo 1HP Garden Submersible Pump XKS-750SW Specifications
Leo 1HP garden submersible pump XKS-750SW features an insulation class of F, ensuring it operates safely under various conditions. Its protection class of IPX8, enables it to specifically withstand submersion in water, which is a must in wet environments. The pump body is constructed from durable stainless steel, specifically AISI 304 to provide excellent resistance to corrosion. It can handle liquids at a maximum temperature of +35℃ and can be immersed up to a depth of 7 meters. This Leo submersible pump is capable of managing particles with a maximum diameter of 35 mm, ensuring efficient operation in various applications. The handle and canister are also made from AISI 304 stainless steel, enhancing durability. The impeller is crafted from PA6, a sturdy material that contributes to the pump’s overall safety and efficiency. Its strong construction ensures longevity, making it a reliable choice for both residential and industrial use. Whether you need to drain water from a flooded area or transfer liquids, this pump is up to the task.
| Specification | Value |
| Insulation class | F |
| Protection class | IPX8 |
| Max. liquid temperature | +35℃ |
| Max. immersion depth | 7m |
| Max. diameter of particle | 35 mm |
| Power (HP) | 1 |
| Power (kW) | 0.75 |
| H (m) | 2.5-8.3 |
| Voltage (V) | 220 |
| Frequency (Hz) | 50 |
Leo 1HP Garden Submersible Pump XKS-750SW Materials
- Pump body: Stainless steel, AISI 304
- Handle: AISI 304
- Impeller: PA6
- Canister: Stainless
Leo 1HP Garden Submersible Pump XKS-750SW Technical Data
| Q(m³/h) | 0 | 2 | 4 | 6 | 8 | 10 |
| Q(l/min) | 0 | 33 | 67 | 100 | 133 | 167 |
| H (m) | 8.3 | 7.3 | 6.3 | 5.2 | 4.2 | 2.5 |
Leo 1HP Garden Submersible Pump XKS-750SW Applications
- Water drainage in flooded areas
- Irrigation systems for gardens and farms
- Transfer of liquids in industrial settings
- Pumping water for construction sites
Leo 1HP Garden Submersible Pump XKS-750SW Benefits
- Durable stainless steel construction for longevity
- High efficiency with a powerful 1 HP motor
- Can handle solid particles up to 35 mm
- IPX8 rating ensures safe operation in submerged conditions
