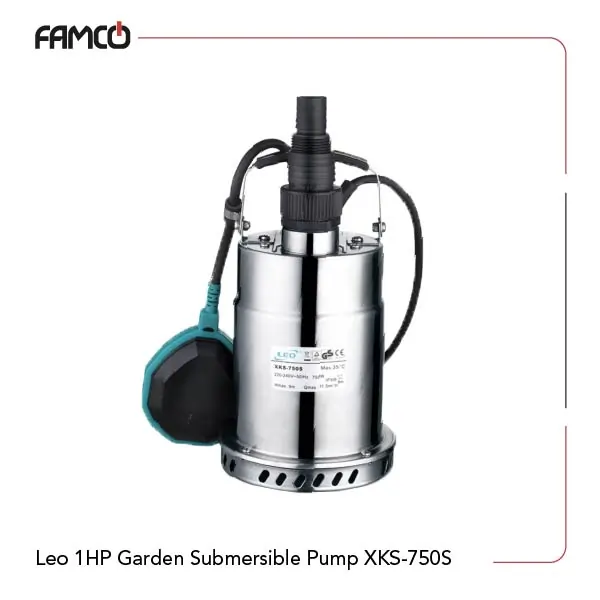

Leo 1HP Garden Submersible Pump XKS-750S Specifications
This pump features a sturdy engineering plastic body, ensuring durability and resistance to various liquids. It handles a maximum liquid temperature of +35℃ and has an impressive immersion depth of up to 7 meters. This Leo submersible pump is designed to manage particles with a maximum diameter of 5 mm, making it suitable for various applications. The winding is made of aluminum, providing efficient performance, while the insulation class is rated at F for safety. With a protection class of IPX8, this pump is well-suited for wet environments. The base is constructed from AISI 304 stainless steel, ensuring longevity and resistance to corrosion. The impeller is made from PPO, and the mechanical seal consists of carbon and ceramic materials, enhancing reliability.
| Specification | Value |
| Max. Liquid Temperature | +35℃ |
| Max. Immersion Depth | 7 m |
| Max. Diameter of Particle | 5 mm |
| Insulation Class | F |
| Protection Class | IPX8 |
| H (m) | 2.3-8.5 |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Voltage (V) | 220 |
| Frequency (Hz) | 50 |
Leo 1HP Garden Submersible Pump XKS-750S Materials
- Pump Body: Engineering Plastic
- Winding: Aluminum
- Pump Base: AISI 304
- Impeller: PPO
- Mechanical Seal: Carbon/Ceramic
Leo 1HP Garden Submersible Pump XKS-750S Technical Data
| Q (m3/h) | 0 | 2 | 4 | 6 | 8 | 10 |
| Q (l/min) | 0 | 33 | 67 | 100 | 133 | 167 |
| H (m) | 8.5 | 7.8 | 6.8 | 5.5 | 4 | 2.3 |

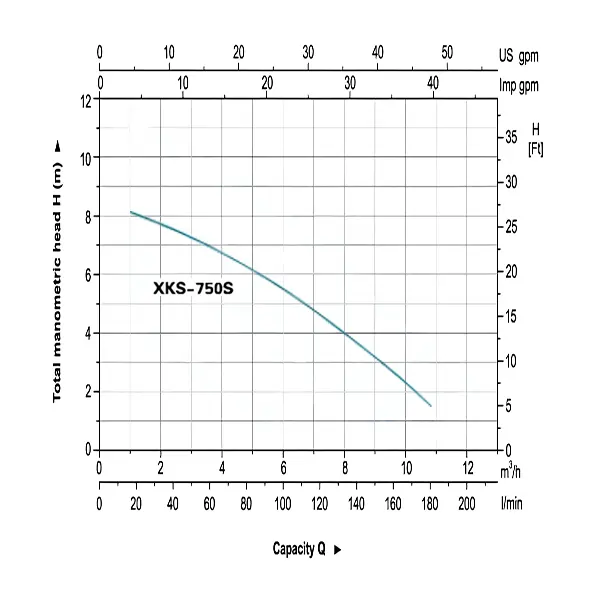

Leo 1HP Garden Submersible Pump XKS-750S Performance Curve
Leo 1HP Garden Submersible Pump XKS-750S Applications
- Residential drainage systems
- Irrigation in gardens and farms
- Water circulation in aquariums
- Industrial liquid transfer processes
Leo 1HP Garden Submersible Pump XKS-750S Benefits
- Durable construction with engineering plastic and stainless steel
- Efficient performance with a power rating of 750 watts
- Versatile applications for both home and industrial use
- High protection class (IPX8) for safe operation in wet conditions
Leo 1HP Garden Submersible Pump XKS-750S Price List
| No. | Name | Price |
| 1 | Leo 1HP Garden Submersible Pump XKS-750S Price | Contact us |
