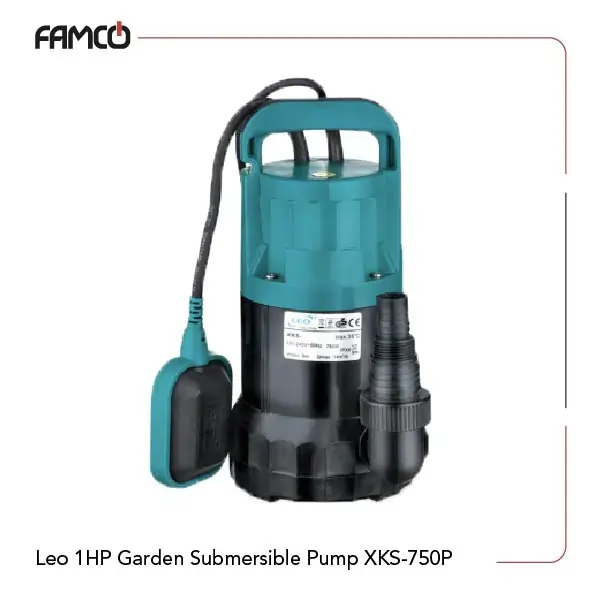

Leo 1HP Garden Submersible Pump XKS-750P Specifications
Leo 1HP garden submersible pump XKS-750P features a sturdy engineering plastic body, ensuring durability and resistance to various liquids. It handles a maximum liquid temperature of +35℃ and has an impressive immersion depth of up to 7 meters. Designed to manage particles up to 5 mm in diameter, it utilizes aluminum winding for efficient performance. The insulation class is rated at F, providing excellent thermal protection. With a protection class of IPX8, this Leo submersible pump is suitable for continuous immersion in water. The base is made from PP, while the impeller is crafted from PA6, ensuring reliable operation. It operates efficiently with a power output of 750 watts, equivalent to 1 horsepower, and can handle flow rates between 2 to 8.7 cubic meters.
| Specification | Value |
| Max. Liquid Temperature | +35℃ |
| Max. Immersion Depth | 7 m |
| Max. Diameter of Particle | 5 mm |
| Protection Class | IPX8 |
| Head (m) | 2-8.7 |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Frequency (Hz) | 50 |
| Voltage (V) | 220 |
Leo 1HP Garden Submersible Pump XKS-750P Materials
- Pump Body: Engineering plastic
- Winding: Aluminum
- Insulation Class: F
- Pump Base: PP
- Impeller: PA6
Leo 1HP Garden Submersible Pump XKS-750P Technical Data
| Q(m³/h) | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12 |
| Q(l/min) | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 225 |
| H (m) | 8.2 | 7.5 | 7 | 6.5 | 5.6 | 4.8 | 3.8 | 2.8 | 1.5 |

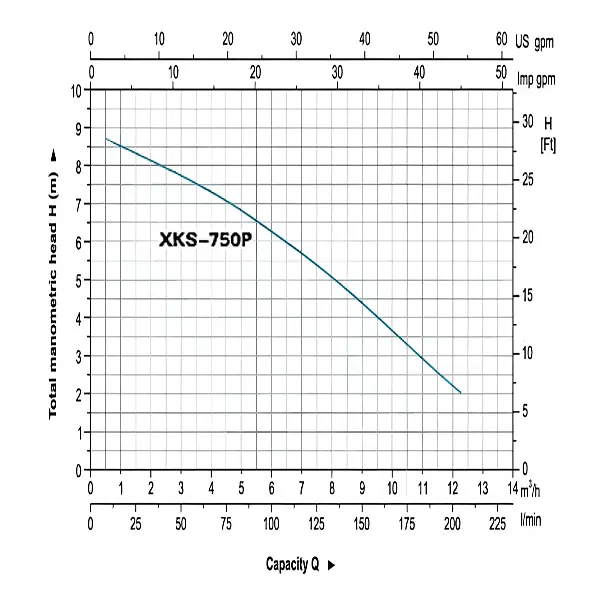

Leo 1HP Garden Submersible Pump XKS-750P Performance Curve
Leo 1HP Garden Submersible Pump XKS-750P Applications
- Water drainage in residential areas
- Irrigation systems for gardens and farms
- Aquarium water circulation
- Light industrial water transfer tasks
Leo 1HP Garden Submersible Pump XKS-750P Benefits
- Durable construction with engineering plastic
- Efficient operation with low power consumption
- High immersion depth for versatile use
- Ability to handle small particles without clogging
Leo 1HP Garden Submersible Pump XKS-750P Price List
| No. | Name | Price |
| 1 | Leo 1HP Garden Submersible Pump XKS-750P Price | Contact us |
