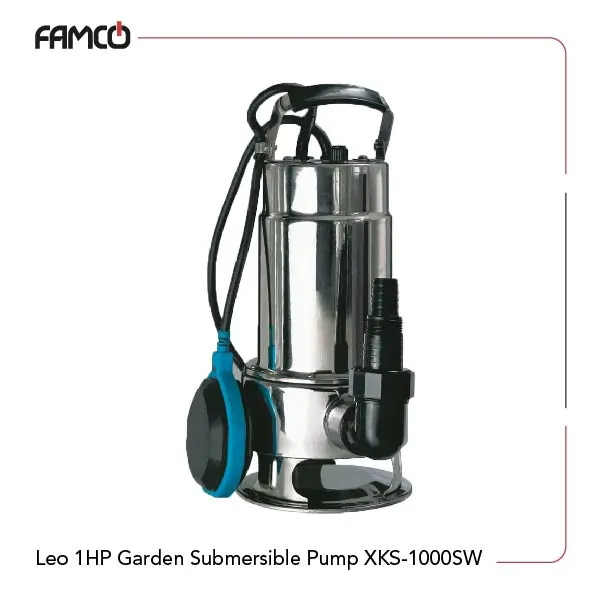

Leo 1HP Garden Submersible Pump XKS-1000SW Specifications
Leo 1HP garden submersible pump XKS-1000SW features an insulation class of F, ensuring reliable performance in various conditions. Its powerful protection class of IPX8 is designed to withstand submersion in water, which is ideal for challenging environments. This Leo submersible pump has its body made from high-quality stainless steel (AISI 304), providing durability and resistance to corrosion. It also handles liquids at a maximum temperature of +35℃ and can be immersed up to 7 meters deep. This pump efficiently manages particles up to 35 mm in diameter. The handle and canister are also made from AISI 304 stainless steel, ensuring longevity. The impeller is crafted from PA6, contributing to its effective operation. Its power output of 1.3 HP (1000 W) enables it to operate within a head range of 2.8 to 10.3 meters which is suitable for various pumping tasks.
| Specification | Value |
| Insulation class | F |
| Protection class | IPX8 |
| Max. liquid temperature | +35℃ |
| Max. immersion depth | 7m |
| Max. diameter of particle | 35 mm |
| Power (HP) | 1.3 |
| Power (kW) | 1 |
| H (m) | 2.8-10.3 |
| Voltage (V) | 220 |
| Frequency (Hz) | 50 |
Leo 1HP Garden Submersible Pump XKS-1000SW Materials
- Pump body: Stainless steel, AISI 304
- Handle: AISI 304
- Impeller: PA6
- Canister: Stainless
Leo 1HP Garden Submersible Pump XKS-1000SW Technical Data
| Q(m³/h) | 0 | 2 | 4 | 6 | 8 | 10 | 12 |
| Q(l/min) | 0 | 33 | 67 | 100 | 133 | 167 | 200 |
| H (m) | 10.3 | 9.3 | 8.2 | 7 | 5.8 | 4.5 | 2.8 |
Leo 1HP Garden Submersible Pump XKS-1000SW Applications
- Water drainage in construction sites
- Irrigation systems for agriculture
- Pumping water in aquaculture
- Industrial liquid transfer
Leo 1HP Garden Submersible Pump XKS-1000SW Benefits
- Durable stainless steel construction
- High protection against water ingress
- Efficient operation with larger particles
- Versatile for various applications
Leo 1HP Garden Submersible Pump XKS-1000SW Price List
| No. | Name | Price |
| 1 | Leo 1HP Garden Submersible Pump XKS-1000SW Price | Contact us |
