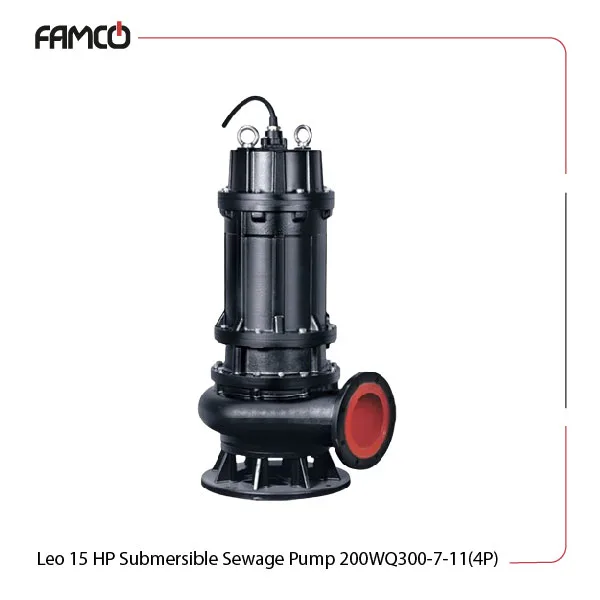

Leo 15 HP Submersible Sewage Pump 200WQ300-7-11(4P) Specifications
This powerful pump is designed for heavy-duty applications. This sewage pump from Leo is unrivaled, with a maximum immersion depth of 25 meters for deep water extraction. The liquid temperature can reach up to 40 degrees Celsius, and it operates efficiently at a frequency of 50Hz. The pH range of the liquid that this sewage pump handles is between 5 and 9. The winding is made of durable copper, providing excellent conductivity. This series of Leo submersible pumps has an insulation class of B, guaranteeing a safe operation. The pump has a protection degree of IP68. It has a power output of 11 kW (15 HP) and can achieve a maximum head of 18 meters. The impressive flow rate is 360 m3/h, and it operates at a speed of 1500 rpm. It requires a three-phase voltage of 380V and features a reliable Sic-Sic mechanical seal for longevity.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Max. head (m) | 18 |
| Max. flow rate (m3/h) | 360 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 15 HP Submersible Sewage Pump 200WQ300-7-11(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 15 HP Submersible Sewage Pump 200WQ300-7-11(4P) Applications
- Irrigation systems in agriculture
- Water supply for industrial processes
- Drainage in construction sites
- Wastewater management
Leo 15 HP Submersible Sewage Pump 200WQ300-7-11(4P) Benefits
- High efficiency with a flow rate of 360 m3/h
- Durable construction with copper winding
- Suitable for deep water extraction up to 25 meters
- Reliable operation in harsh conditions with IP68 rating
Leo 15 HP Submersible Sewage Pump 200WQ300-7-11(4P) Price List
| No. | Name | Price |
| 1 | Leo 15 HP Submersible Sewage Pump 200WQ300-7-11(4P) Price | Contact us |
