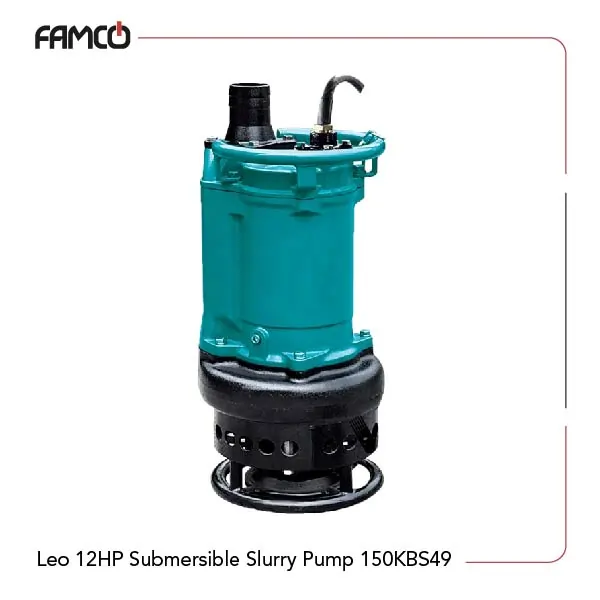

Leo 12HP Submersible Slurry Pump 150KBS49 Specifications
This powerful pump features a robust cast iron upper cover, motor body, and pump body, ensuring durability and longevity. The mechanical seal is made of Sic-Sic/Sic-Sic, providing reliable sealing performance. The impeller and inlet plate are crafted from high chrome alloy, which enhances resistance to wear and corrosion. This Leo submersible pump has a maximum liquid temperature of +40℃ and a maximum immersion depth of 25 meters; designed for demanding applications. This Leo subemersible pump operates with a copper winding and has an insulation class of B to reach utmost efficient performance. The protection class is IP68 which has made this pump suitable for submerged use. This pump has a power output of 9 kW (12 HP) to achieve a maximum head of 21.5 meters and a flow rate of 168 m³/h (2.8 m³/min). The impeller passage measures 30 mm for effective fluid movement.
| Specification | Value |
| Max. liquid temperature | +40℃ |
| Max. Immersion depth | 25 m |
| Insulation class | B |
| Protection class | IP68 |
| Power (kW) | 9 |
| Power (HP) | 12 |
| Max head | 21.5 |
| Max. Flow Rate (l/min) | 2800 |
| Max. Flow Rate (m³ /h) | 168 |
| Impeller passage (mm) | 30 |
Leo 12HP Submersible Slurry Pump 150KBS49 Materials
- Upper Cover: Cast Iron
- Handle: Steel
- Motor Body: Cast Iron
- Pump Body: Cast Iron
- Mechanical Seal: Sic-Sic/Sic-Sic
- Impeller: High Chrome alloy
- Inlet Plate: High Chrome alloy
- Inlet Base: Cast Iron
- Agitator: High Chrome alloy
- Winding: Copper

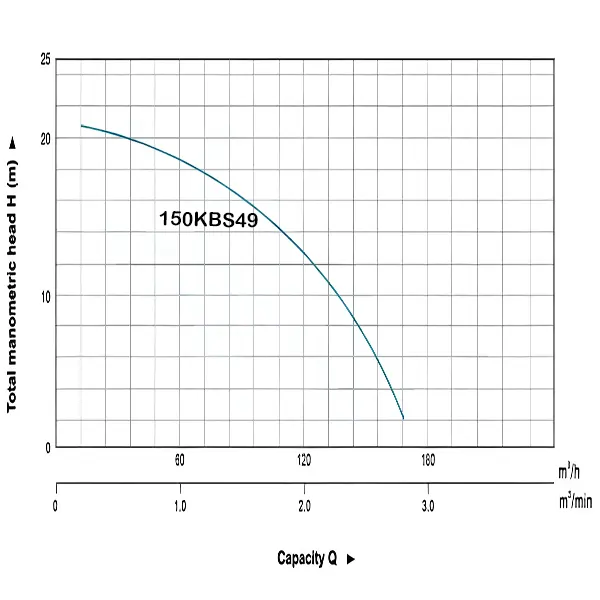

Leo 12HP Submersible Slurry Pump 150KBS49 Performance Curve
Leo 12HP Submersible Slurry Pump 150KBS49 Applications
- Industrial water transfer
- Wastewater management
- Irrigation systems
- Construction site dewatering
Leo 12HP Submersible Slurry Pump 150KBS49 Benefits
- Durable cast iron construction for long-lasting use
- High flow rate for efficient operation
- IP68 protection for submerged applications
- High chrome alloy components resist wear and corrosion
Leo 12HP Submersible Slurry Pump 150KBS49 Price List
| No. | Name | Price |
| 1 | Leo 12HP Submersible Slurry Pump 150KBS49 Price | Contact us |
