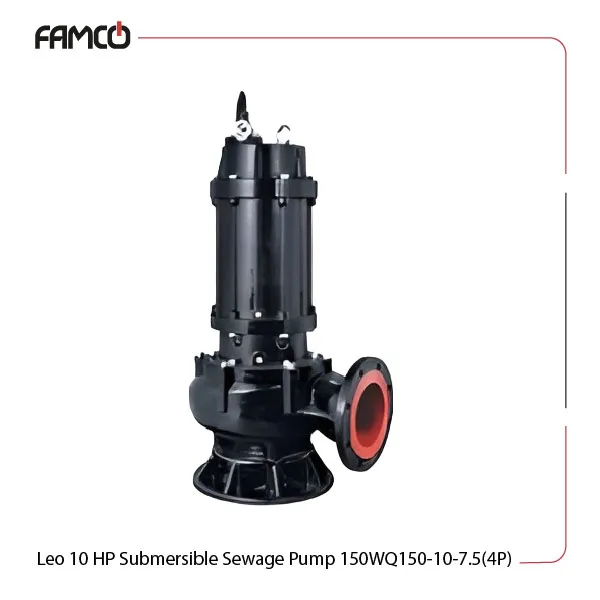

Leo 10 HP Submersible Sewage Pump 150WQ150-10-7.5(4P) Specifications
This powerful pump is designed for deep immersion, with a maximum depth of 25 meters. This Leo sewage pump operates efficiently at a liquid temperature of up to +40 degrees Celsius. This line of submersible pumps runs on a frequency of 50Hz and is suitable for liquids with a pH value ranging from 5 to 9. It features durable copper windings and is rated with an insulation class of B, ensuring safety and reliability. A protection degree of IP68 helps this pump be well-suited for underwater applications. It has a power output of 7.5 kW (10 HP) and can achieve a maximum head of 16 meters. The impressive flow rate reaches up to 220 m3/h, operating at a speed of 1500 rpm. It requires a three-phase voltage of 380V and is equipped with a Sic-Sic mechanical seal for enhanced durability.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. head (m) | 16 |
| Max. flow rate (m3/h) | 220 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 10 HP Submersible Sewage Pump 150WQ150-10-7.5(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 10 HP Submersible Sewage Pump 150WQ150-10-7.5(4P) Applications
- Deep well pumping
- Industrial water supply
- Irrigation systems
- Wastewater management
Leo 10 HP Submersible Sewage Pump 150WQ150-10-7.5(4P) Benefits
- High efficiency with a maximum flow rate of 220 m3/h
- Durable construction with copper windings
- Reliable operation at a maximum depth of 25 meters
- Versatile use in various liquid environments with pH 5-9
Leo 10 HP Submersible Sewage Pump 150WQ150-10-7.5(4P) Price List
| No. | Name | Price |
| 1 | Leo 10 HP Submersible Sewage Pump 150WQ150-10-7.5(4P) Price | Contact us |
