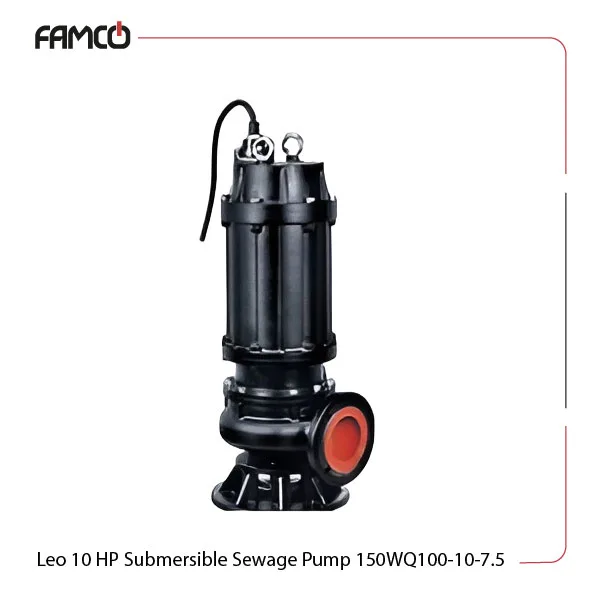

Leo 10 HP Submersible Sewage Pump 150WQ100-10-7.5 Specifications
This powerful pump is designed for deep immersion, with a maximum depth of 25 meters. This line of Leo submersible pumps operates efficiently at a liquid temperature of up to 40°C and supports a pH range of 5 to 9. The copper winding ensures excellent conductivity, while the insulation class B provides reliable protection against overheating. With an IP68 rating, this sewage pump is fully submersible and can withstand harsh conditions. It boasts a power output of 7.5 kW (10 HP) and can achieve a maximum head of 20 meters. The impressive flow rate of 140 m³/h at a speed of 3000 rpm makes it suitable for various applications. The three-phase voltage requirement is 380V, and it features a durable Sic-Sic mechanical seal for enhanced longevity.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. head (m) | 20 |
| Max. flow rate (m3/h) | 140 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 10 HP Submersible Sewage Pump 150WQ100-10-7.5 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 10 HP Submersible Sewage Pump 150WQ100-10-7.5 Applications
- Irrigation systems in agriculture
- Industrial water supply and drainage
- Wastewater treatment facilities
- Cooling systems in manufacturing processes
Leo 10 HP Submersible Sewage Pump 150WQ100-10-7.5 Benefits
- High efficiency with a maximum flow rate of 140 m³/h
- Durable construction with IP68 protection for submersion
- Versatile operation across various pH levels
- Reliable performance with a powerful 7.5 kW motor
Leo 10 HP Submersible Sewage Pump 150WQ100-10-7.5 Price List
| No. | Name | Price |
| 1 | Leo 10 HP Submersible Sewage Pump 150WQ100-10-7.5 Price | Contact us |
