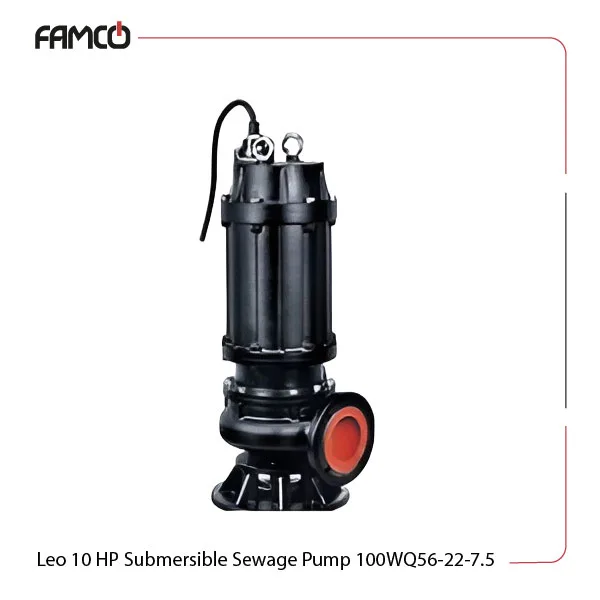

Leo 10 HP Submersible Sewage Pump 100WQ56-22-7.5 Specifications
This powerful pump features a maximum immersion depth of 25 meters, which is a must for deep applications. This Leo submersible pump operates efficiently at a liquid temperature of up to +40°C and supports a liquid pH range of 5 to 9. The copper winding inside this submersible pump ensures durability and reliability, while the insulation class B provides added safety. With a protection degree of IP68, this series of Leo sewage pumps is designed to withstand harsh conditions. It delivers a solid power output of 7.5 kW (10 HP) and can achieve a maximum head of 31 meters. The impressive flow rate of 90 m3/h and a speed of 3000 rpm make it ideal for various demanding tasks. It operates on a three-phase voltage of 380V and features a reliable Sic-Sic mechanical seal for enhanced performance.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. head (m) | 31 |
| Max. flow rate (m3/h) | 90 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 10 HP Submersible Sewage Pump 100WQ56-22-7.5 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic
Leo 10 HP Submersible Sewage Pump 100WQ56-22-7.5 Applications
- Irrigation systems in agriculture
- Industrial water supply and drainage
- Construction site dewatering
- Aquaculture and fish farming
Leo 10 HP Submersible Sewage Pump 100WQ56-22-7.5 Benefits
- High efficiency with a maximum flow rate of 90 m3/h
- Durable copper winding for long-lasting performance
- IP68 protection for reliable operation in wet environments
- Versatile applications across various industries
Leo 10 HP Submersible Sewage Pump 100WQ56-22-7.5 Price List
| No. | Name | Price |
| 1 | Leo 10 HP Submersible Sewage Pump 100WQ56-22-7.5 Price | Contact us |
