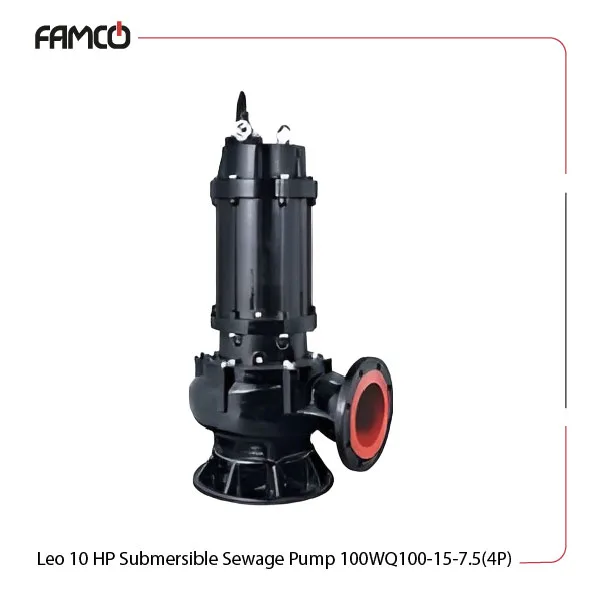

Leo 10 HP Submersible Sewage Pump 100WQ100-15-7.5(4P) Specifications
This powerful pump features a maximum immersion depth of 25 meters. This series of Leo submersible pumps operates efficiently at a liquid temperature of up to 40°C and supports a pH range of 5 to 9. The copper winding ensures durability and reliability, while the insulation class B provides adequate protection against heat. With an IP68 protection degree, this line of Leo sewage pumps withstands harsh conditions. It delivers a consistent power output of 7.5 kW (10 HP) and can achieve a maximum head of 21 meters. The impressive flow rate of 170 m3/h at a speed of 1500 rpm makes it ideal for various industrial uses. This submersible pump operates on a three-phase voltage of 380V and features a reliable Sic-Sic mechanical seal for enhanced performance.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 7.5 |
| Power (HP) | 10 |
| Max. head (m) | 21 |
| Max. flow rate (m3/h) | 170 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 10 HP Submersible Sewage Pump 100WQ100-15-7.5(4P) Materials
- Mechanical seal: Sic-Sic/Sic-Sic
- Winding: copper
Leo 10 HP Submersible Sewage Pump 100WQ100-15-7.5(4P) Applications
- Irrigation systems in agriculture
- Water supply for industrial processes
- Drainage in construction sites
- Wastewater management
Leo 10 HP Submersible Sewage Pump 100WQ100-15-7.5(4P) Benefits
- High efficiency with a maximum flow rate of 170 m3/h
- Durable copper winding for long-lasting performance
- IP68 rating ensures protection against water and dust
- Versatile applications across various industries
Leo 10 HP Submersible Sewage Pump 100WQ100-15-7.5(4P) Price List
| No. | Name | Price |
| 1 | Leo 10 HP Submersible Sewage Pump 100WQ100-15-7.5(4P) Price | Contact us |
