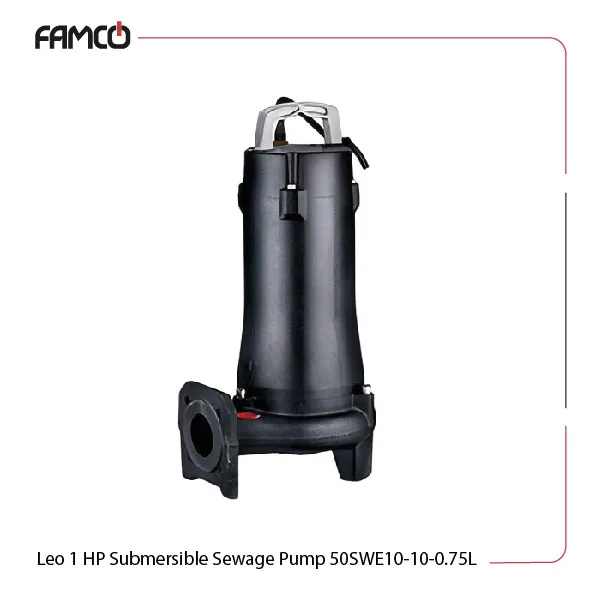

Leo 1 HP Submersible Sewage Pump 50SWE10-10-0.75L Specifications
This product is designed for efficient liquid handling with a temperature range of 0-40℃ and a pH value between 4 and 10. This series of Leo submersible pumps is known for their immersion depths in sewage management systems. This one can be immersed up to 5 meters deep, making it suitable for various applications. Operating at a frequency of 50Hz, it features a two-pole motor with an insulation class of F. The protection class is IPX8, ensuring durability in wet conditions. With a power output of 1 HP (0.75 kW), it achieves a flow rate of 20 m3/h and a maximum head of 15 meters. These sewage pumps can handle solids up to 20 mm in diameter, thanks to their nicely-built HT200 motor body and impeller. The mechanical seals are made of Sic/Carbon for the upper and Sic for the lower part.
| Specification | Value |
| Liquid temperature | 0-40℃ |
| Liquid PH value | 4 – 10 |
| Max. Immersion depth | 5 m |
| Frequency | 50Hz |
| Pole number | 2 |
| Insulation class | F |
| Protection Class | IPX8 |
| Power (HP) | 1 |
| Power (kW) | 0.75 |
| Flow rate (m3/h) | 20 |
| Max. head (m) | 15 |
| Max. solids diameter (mm) | 20 |
Leo 1 HP Submersible Sewage Pump 50SWE10-10-0.75L Materials
- Motor body: HT200
- Impeller: HT200
- Upper mechanical seal: Sic/Carbon
- Lower mechanical seal: Sic

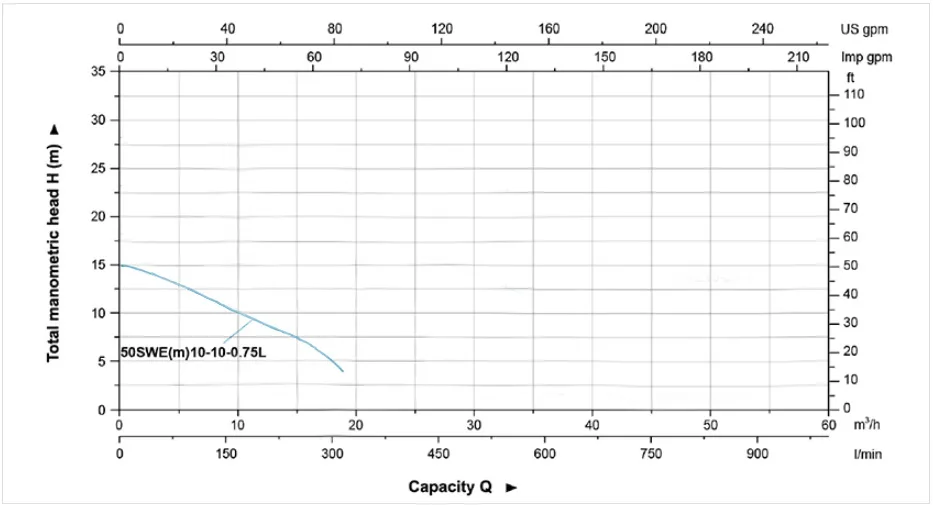

Leo 1 HP Submersible Sewage Pump 50SWE10-10-0.75L Performance Curve
Leo 1 HP Submersible Sewage Pump 50SWE10-10-0.75L Applications
- Irrigation systems in agriculture
- Water drainage in construction sites
- Wastewater management
- Aquaculture and fish farming
Leo 1 HP Submersible Sewage Pump 50SWE10-10-0.75L Benefits
- High efficiency with a flow rate of 20 m3/h
- Durable construction with HT200 materials
- Versatile use in various liquid types
- Reliable performance with IPX8 protection
Leo 1 HP Submersible Sewage Pump 50SWE10-10-0.75L Price List
| No. | Name | Price |
| 1 | Leo 1 HP Submersible Sewage Pump 50SWE10-10-0.75L Price | Contact us |
There are no reviews yet.
