Leo 1 HP Stainless Steel Submersible Pump XQS22.8-12/0.75S

0.75 kW (1 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Leo Pumps, Leo Submersible Pump

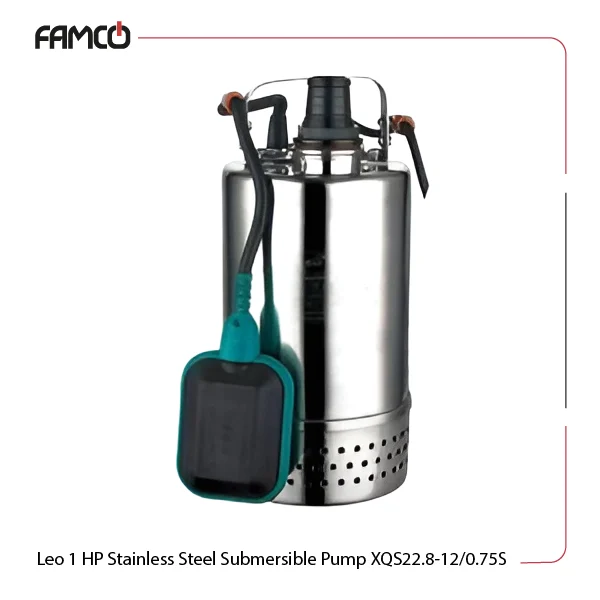

Overview of Leo 1 HP Stainless Steel Submersible Pump XQS22.8-12/0.75S

Among the best of the best, this stainless steel 1 HP pump offers high performance and durability. A maximum flow rate of 350 l/min enables this pump to deliver consistent performance. This pump features a durable copper winding and is rated with an insulation class of B. The pump’s IP68 rating ensures it can operate effectively even when submerged. Its ability to handle a range of liquid temperatures above 40℃ and 4-10 pH levels makes it versatile for different environments. Whether you need to move water or other compatible liquids, this pump delivers reliable results.

Leo 1 HP Stainless Steel Submersible Pump XQS22.8-12/0.75S Specifications

The product’s powerful construction and advanced features are ideal for various applications, including water transfer, drainage, and irrigation. It has an impressive protection class of IP68, ensuring it is waterproof and can be submerged up to 5 meters. The shaft is made from welded stainless steel, providing strength and longevity. This Leo stainless steel submersible pump has a body made from stainless steel to enhance its resistance to corrosion. It can handle liquid temperatures up to +40℃ and is suitable for liquids with a pH value ranging from 4 to 10. The maximum liquid density it can manage is 1.03×10^3 kg/m3. The handle is crafted from stainless steel for better portability. The Sic/Sic mechanical seal and a stainless steel impeller equips these Leo pumps with enhanced performance. This pump operates at a voltage of 220V/50Hz, with a maximum flow rate of 380 liters per minute and a maximum head of 12 meters. The gross weight of the unit is 19.2 kg.

Specification	Value
Winding	Copper
Insulation class	B
Protection class	IP68
Max. immersion depth	5m
Max. liquid temperature	+40℃
Liquid pH value	4-10
Max. liquid density	1.03×10^3 kg/m3
Voltage (V/Hz)	220/50
Max. flow (l/min)	380
Max. head (m)	12
Frequency (Hz)	50
Voltage (V)	220
Power (HP)	1
Power (kW)	0.75

Leo 1 HP Stainless Steel Submersible Pump XQS22.8-12/0.75S Materials

Shaft: welded Stainless steel
Pump body: Stainless steel
Handle: Stainless Steel
Mechanical Seal: Sic/Sic
Impeller: Stainless Steel

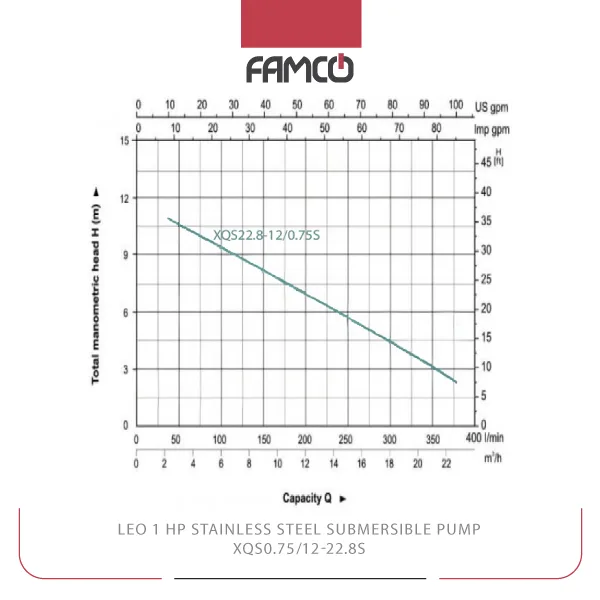

Leo 1 HP Stainless Steel Submersible Pump XQS22.8-12/0.75S Performance Curve

Leo 1 HP Stainless Steel Submersible Pump XQS22.8-12/0.75S Applications

Water transfer in residential and commercial settings
Irrigation systems for agriculture
Drainage of flooded areas
Industrial liquid handling

Leo 1 HP Stainless Steel Submersible Pump XQS22.8-12/0.75S Benefits

Durable stainless steel construction for longevity
High flow rate of 380 liters per minute
Versatile with a wide range of liquid compatibility
Efficient operation with low maintenance needs

Leo 1 HP Stainless Steel Submersible Pump XQS22.8-12/0.75S Price List

No.	Name	Price
1	Leo 1 HP Stainless Steel Submersible Pump XQS22.8-12/0.75S Price	Contact us

Brand	Leo
Insulation Class	B
Degree of Protection	IP68
Maximum immersion depth (m)	5
Maximum Liquid Temperature (°C)	40
Voltage (V)	220
Maximum Flow Rate (L/min)	380
Maximum Delivery Head (m)	12
Frequency (Hz)	50
Power (HP)	1
Power (kW)	0.75
Pump Body	Stainless Steel
